Product Introduction
Lightweight aluminum flat-clip wall panels reduce load, increase usable space, and are demountable for easy renovation. Waste-free, pollution-free, and energy-efficient—they replace brick walls for flexible, modern spatial design.
Meeting tailored design needs while ensuring functionality, aesthetics, and sustainability. Seamless wall-ceiling integration, consistent color and texture—delivering a modern, design-forward architectural statement.

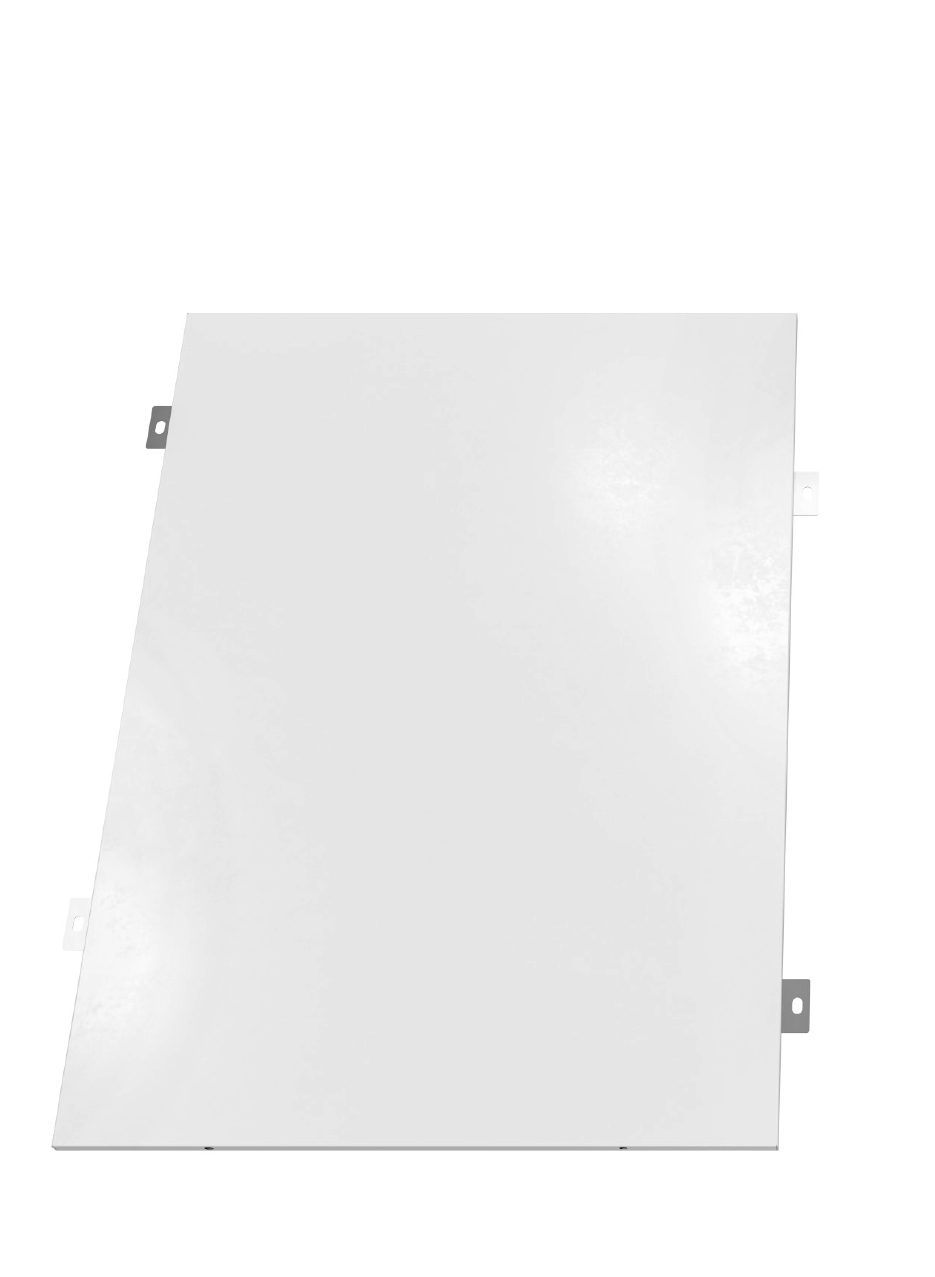

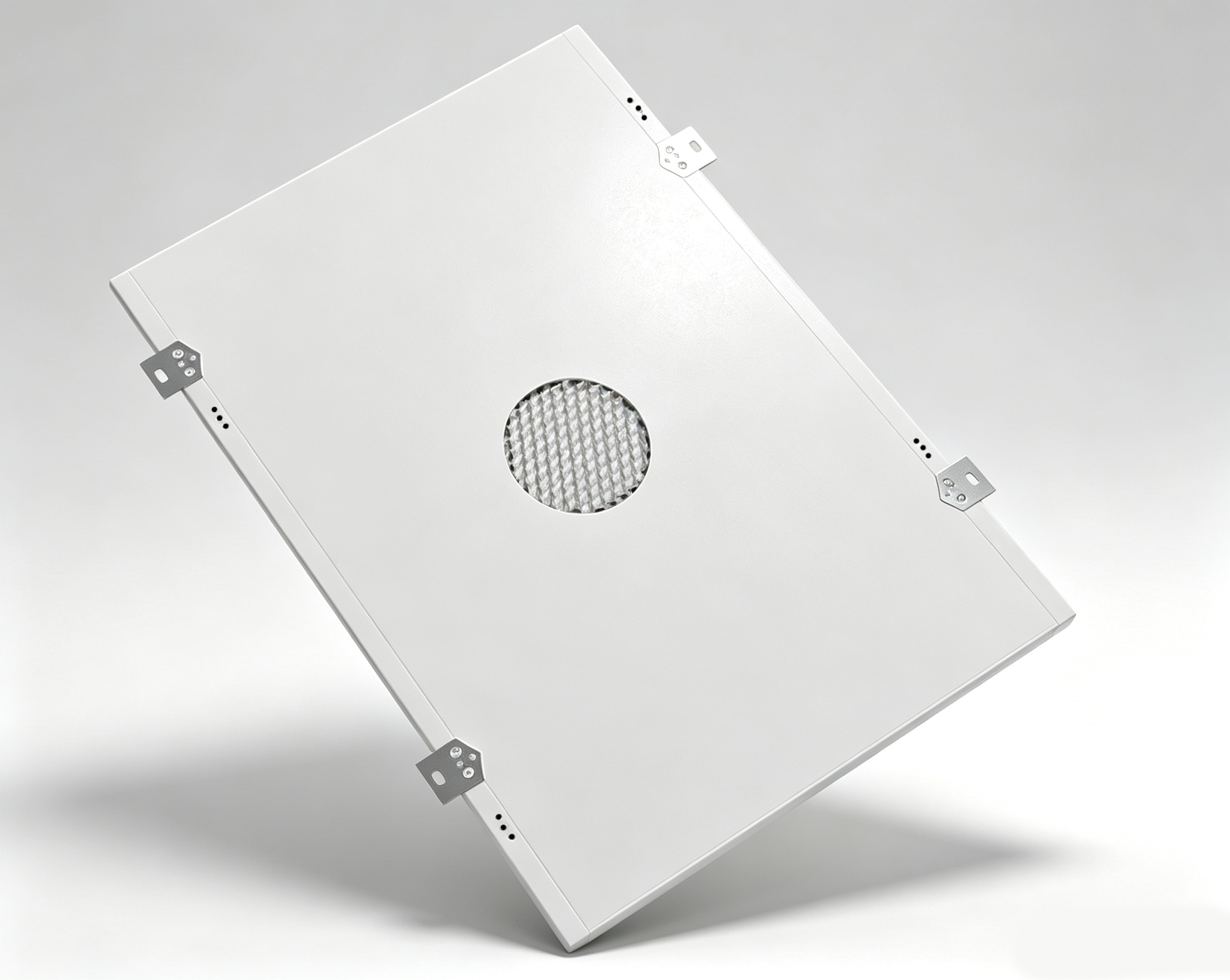

Composite Metal Honeycomb Flat Clip-in Panel
- Material: Steel Plate, Aluminum Plate
- Fire Rating：A级 (GB8624-2012)
- Honeycomb Height: 8.5mm, 13.5mm, 18.5mm (other custom sizes available)
- Dimensions：W:950mm、1150mm,L≤4000mm
- Flatness: Supports large-format panels with excellent surface flatness, delivering a magnificent, smooth, and seamless design effect.
- Deformation Resistance:Bending stiffness: 1.0×10⁴ N·mm² (per JC/T 2113-2012) Bending stiffness: 2.45×10⁶ N·mm² (tested value), standard ≥ 1.0×10⁴ N·mm² (per JC/T 2113-2012) Shear stiffness: 4.91×10⁵ N (tested value), standard ≥ 1.0×10⁴ N (per JC/T 2113-2012)

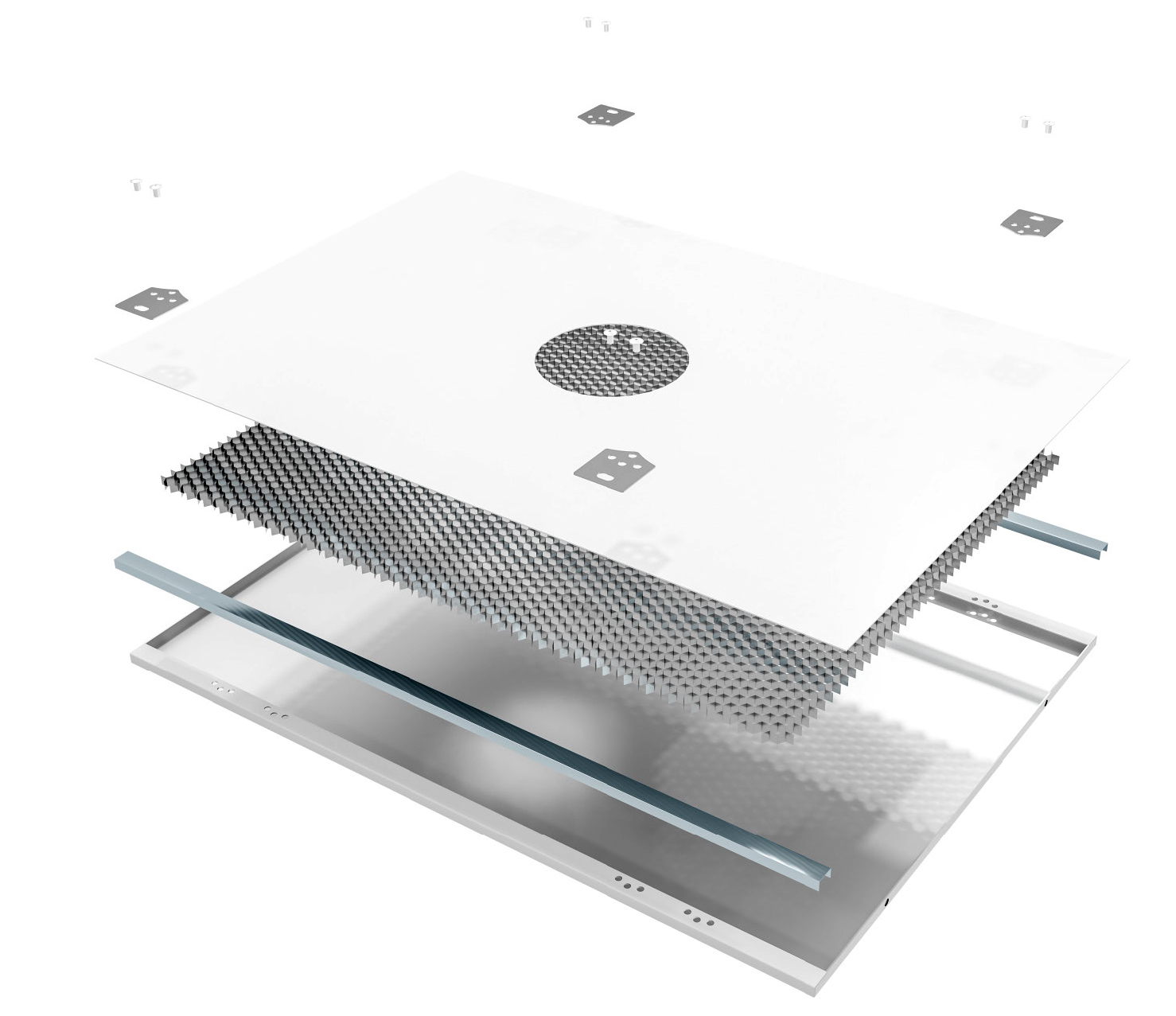

QuanZheng honeycomb composite panel is a lightweight sandwich structure consisting of aluminum sheets bonded to a thick lightweight honeycomb core. It offers high strength-to-weight ratio and is widely used across various industries. The panel contributes to building energy efficiency, optimizes structural design, and enhances economic practicality. With excellent durability, fast renovation capability, and good reusability, it delivers long-term benefits. Layouts can be freely adjusted with vertical and horizontal lines to create diverse configurations, ensuring both spatial transparency and privacy.

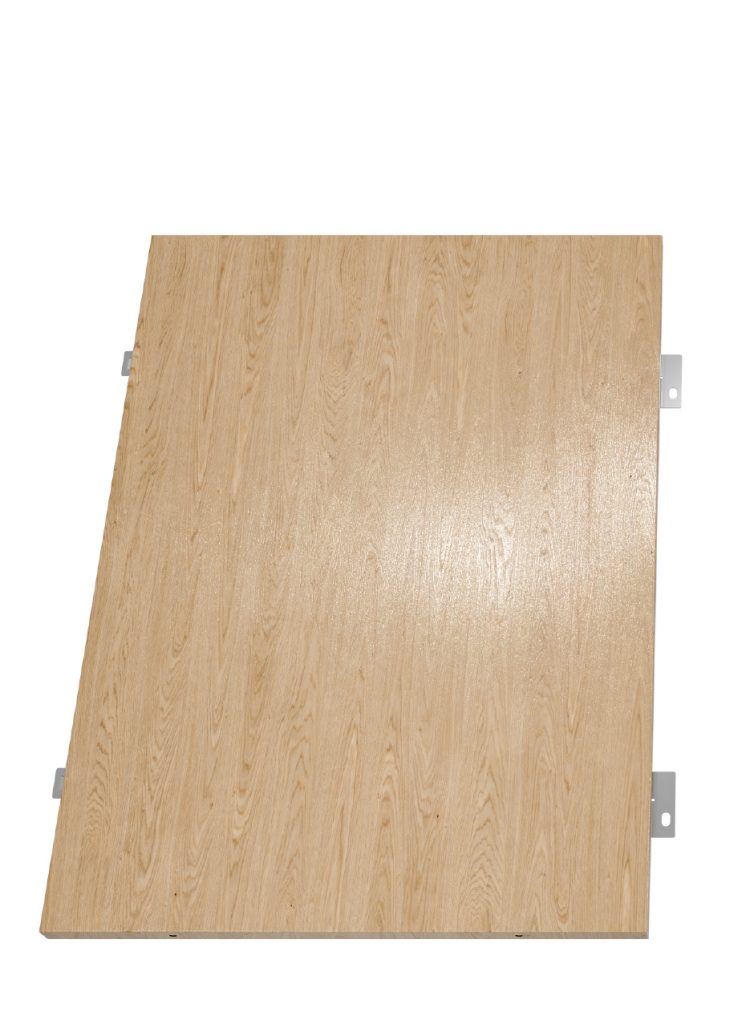

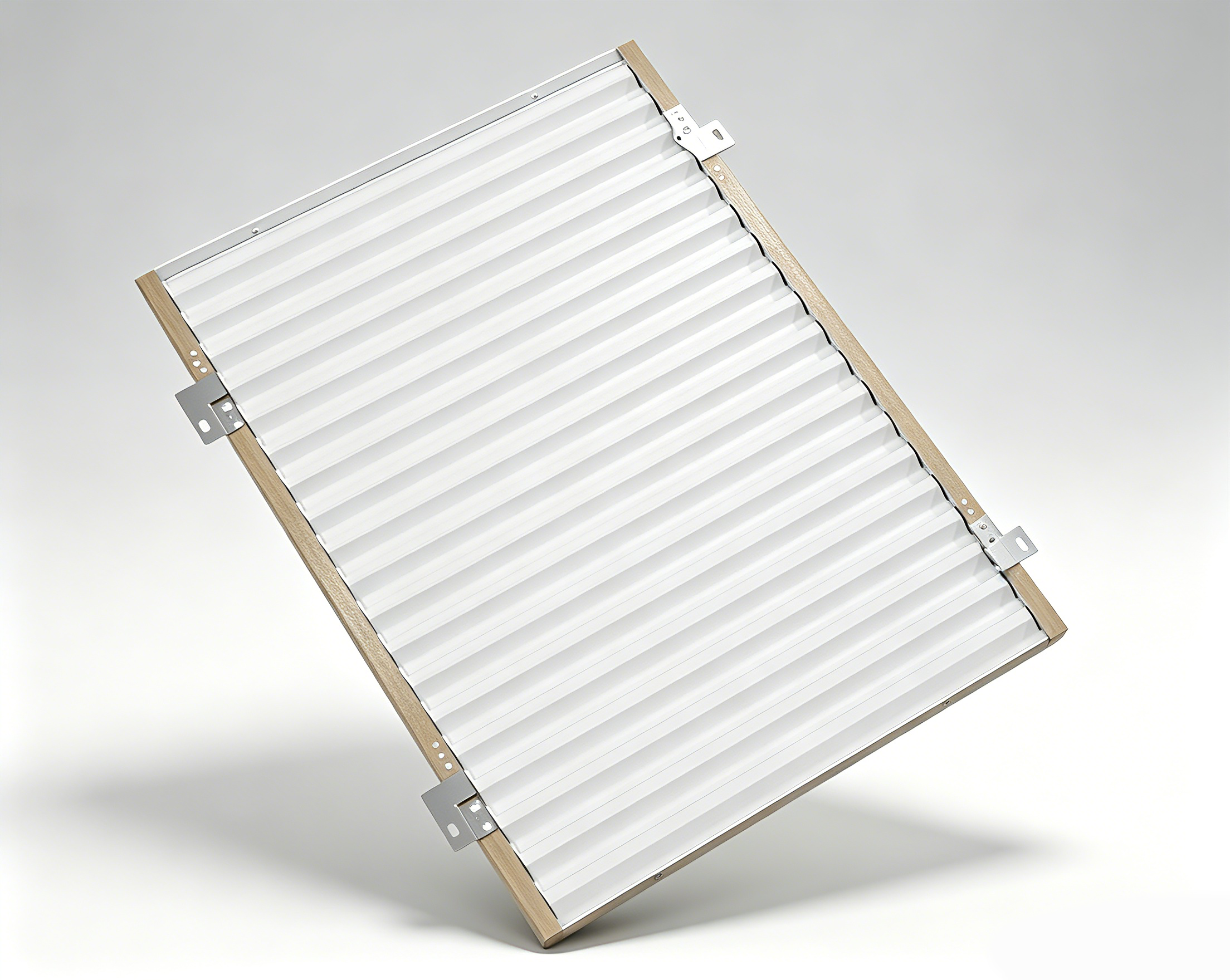

Composite Metal Corrugated Flat Clip-in Panel
- Material: Steel Plate, Aluminum Plate
- Fire Rating：A级 (GB8624-2012)
- Corrugation Height: 12mm (other custom specifications available)
- Dimensions：W:950mm、1150mm,L≤4000mm
- Flatness: Supports large-format panels with excellent surface flatness, delivering a grand, smooth, and seamless design effect.

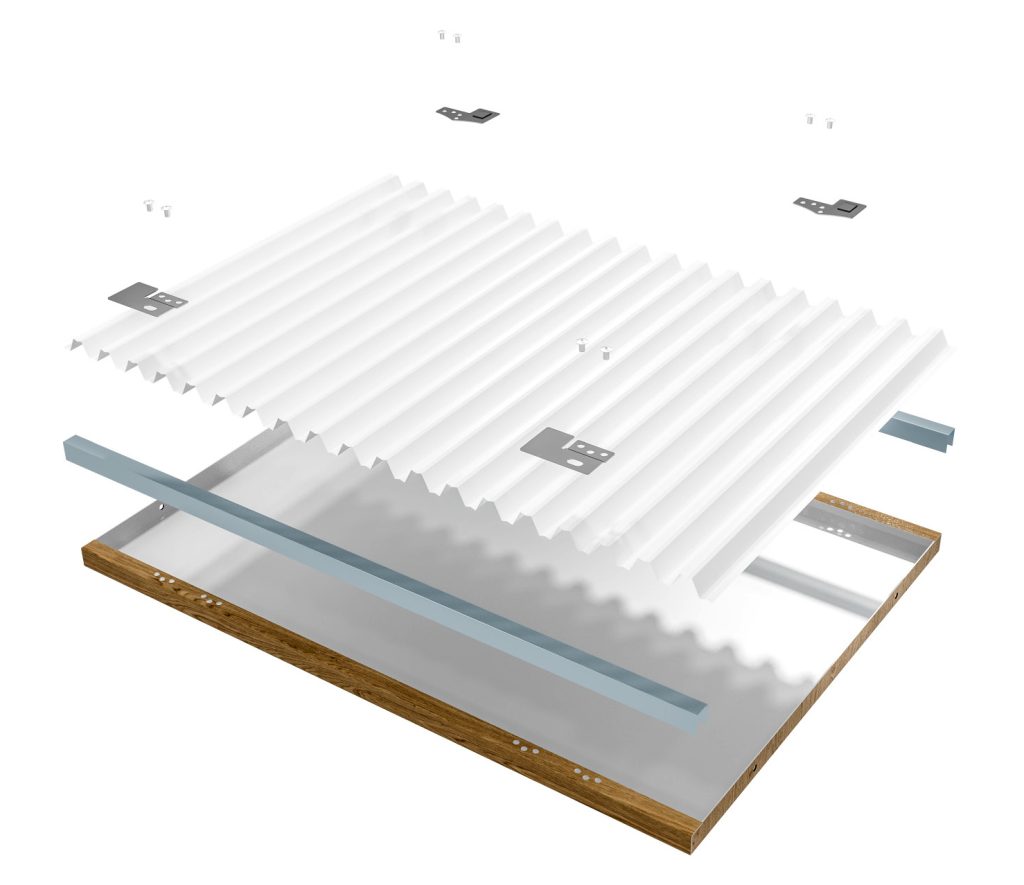

- Deformation Resistance: The air layer between the face sheet, back sheet, and corrugated core of the steel corrugated composite panel is divided into numerous sealed cells. This structure delivers high strength, excellent hardness, and superior rigidity—far surpassing traditional aluminum-plastic panels and solid aluminum sheets.
Quanzheng corrugated panels emit no harmful substances or odors, allowing immediate installation without ventilation delays—making them a truly green building material. With excellent deformation resistance, easy workability, Class A fire rating, large-format panels, high flatness, low energy consumption, and outstanding cost-effectiveness, they provide technical support for designers and offer solutions for top-tier architectural projects. They fully meet spatial functional requirements, enable flexible interior partitioning, and adapt to various environmental needs with versatile space configuration.

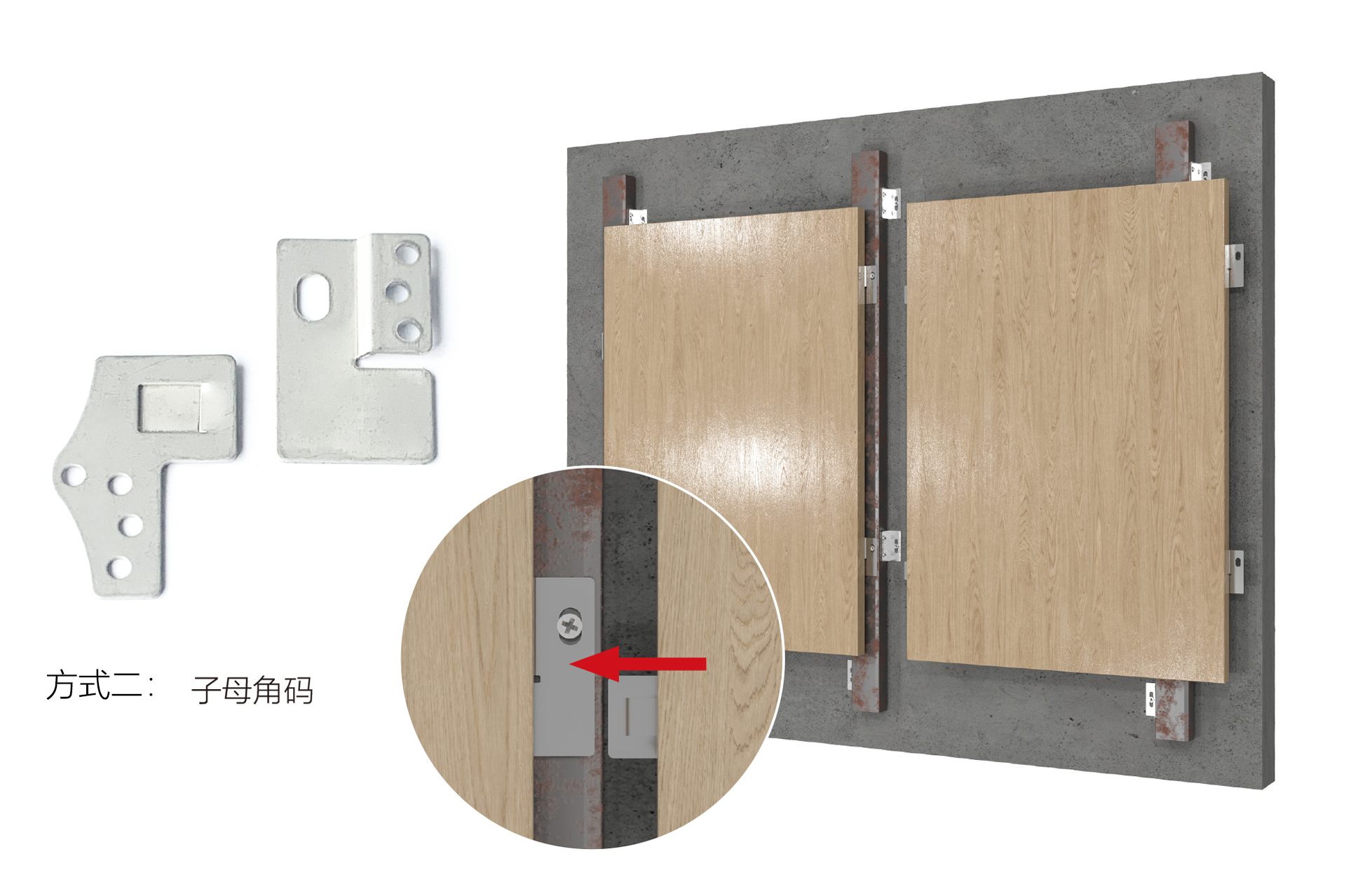

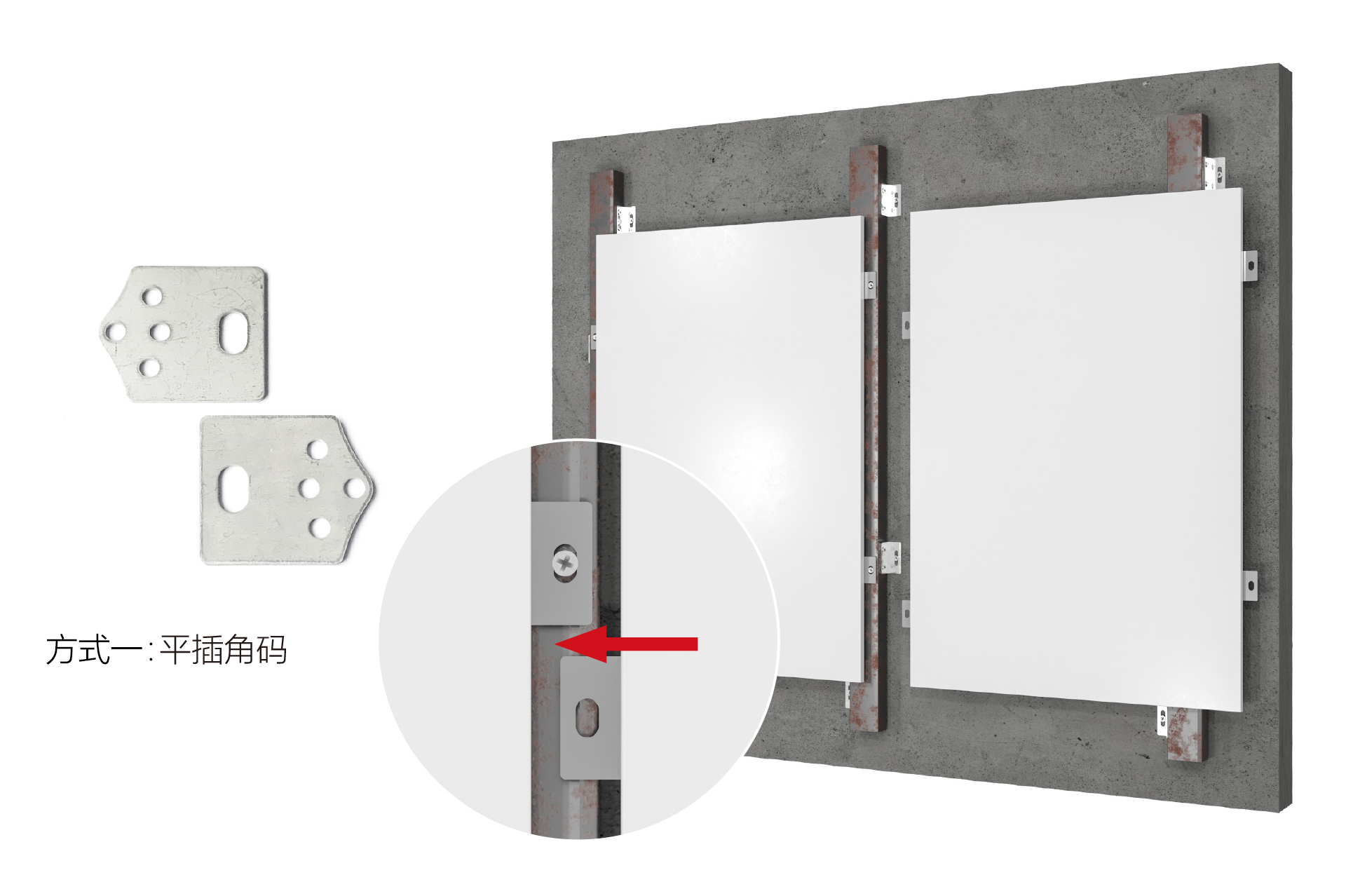

Quanzheng Honeycomb / Corrugated Flat-Clip Panel 3D Installation Demonstration
From seasoned architects to renowned engineers, our comprehensive team of professionals caters to the demands of diverse project teams.

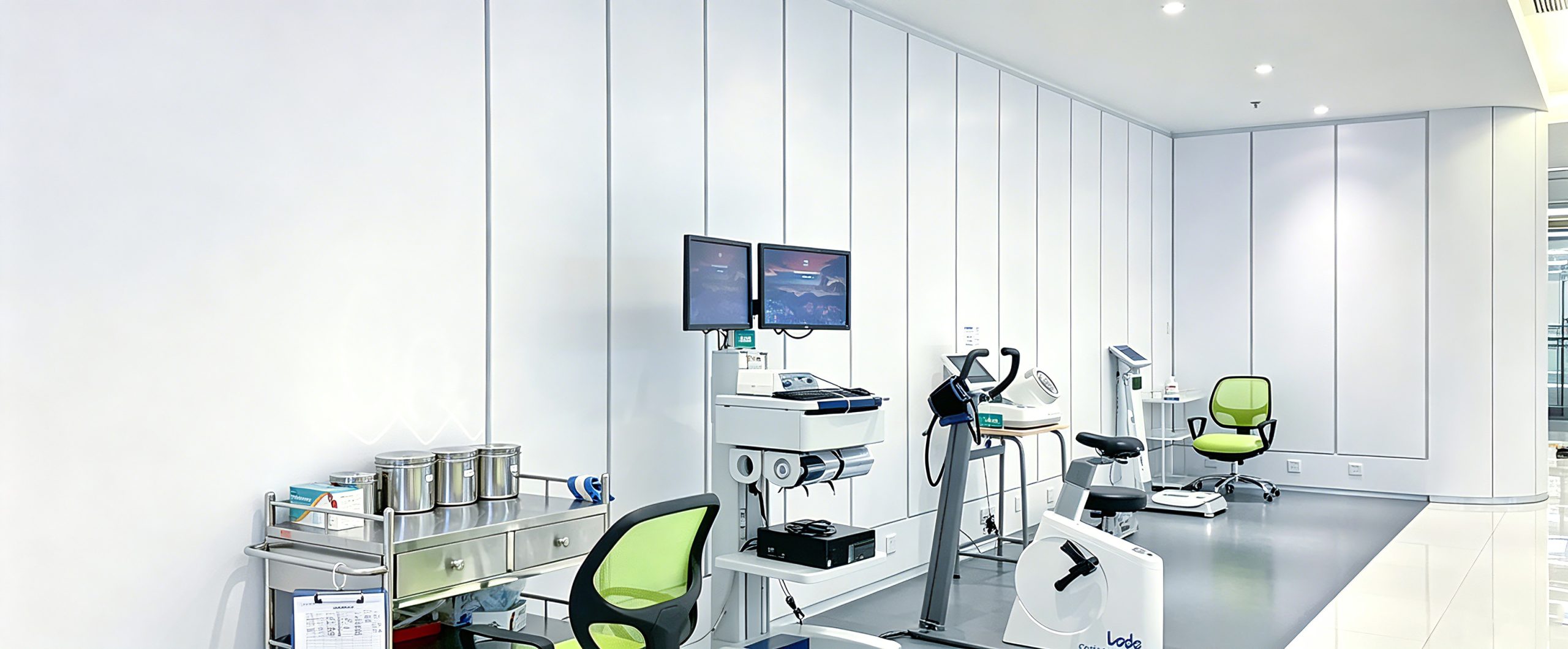

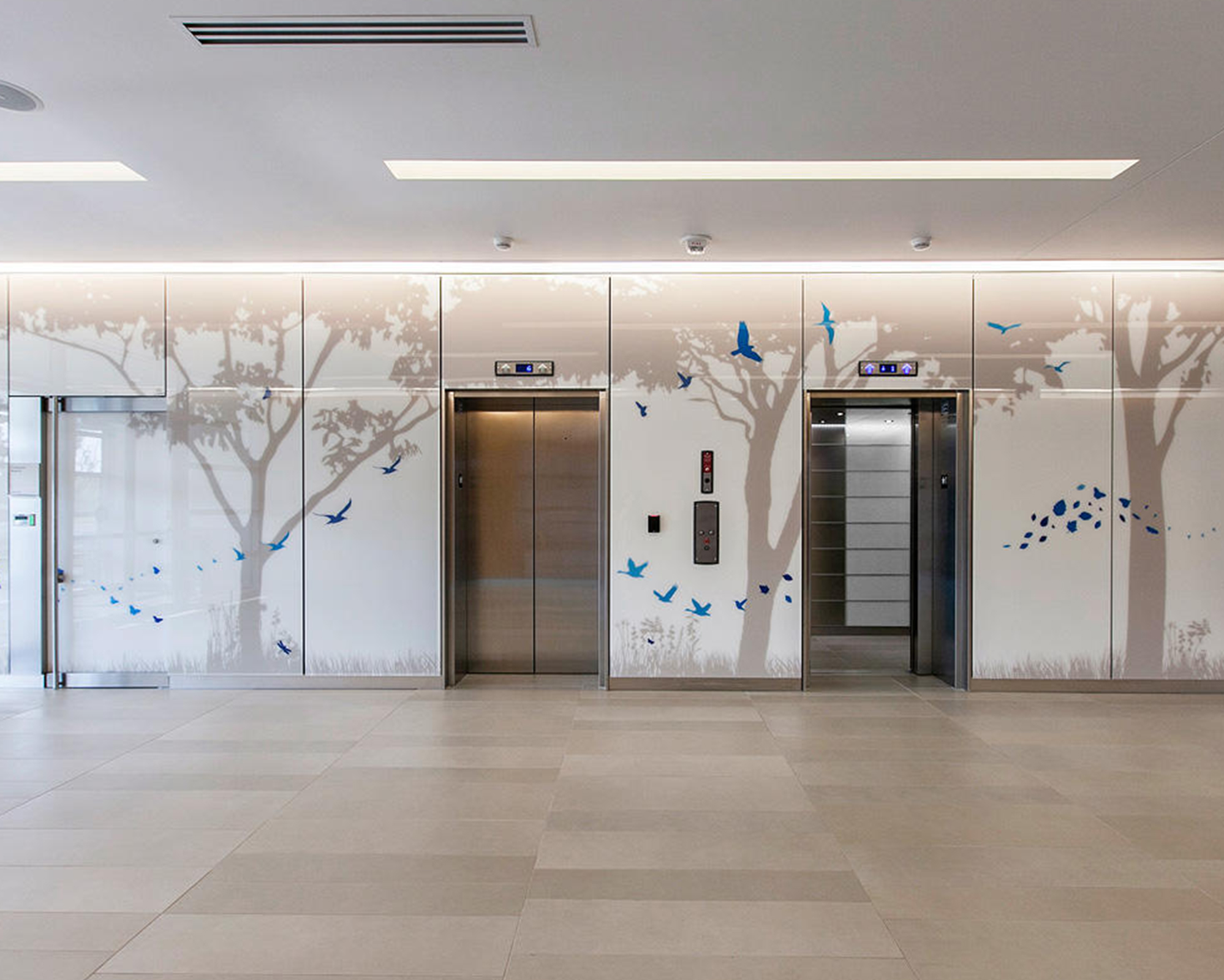

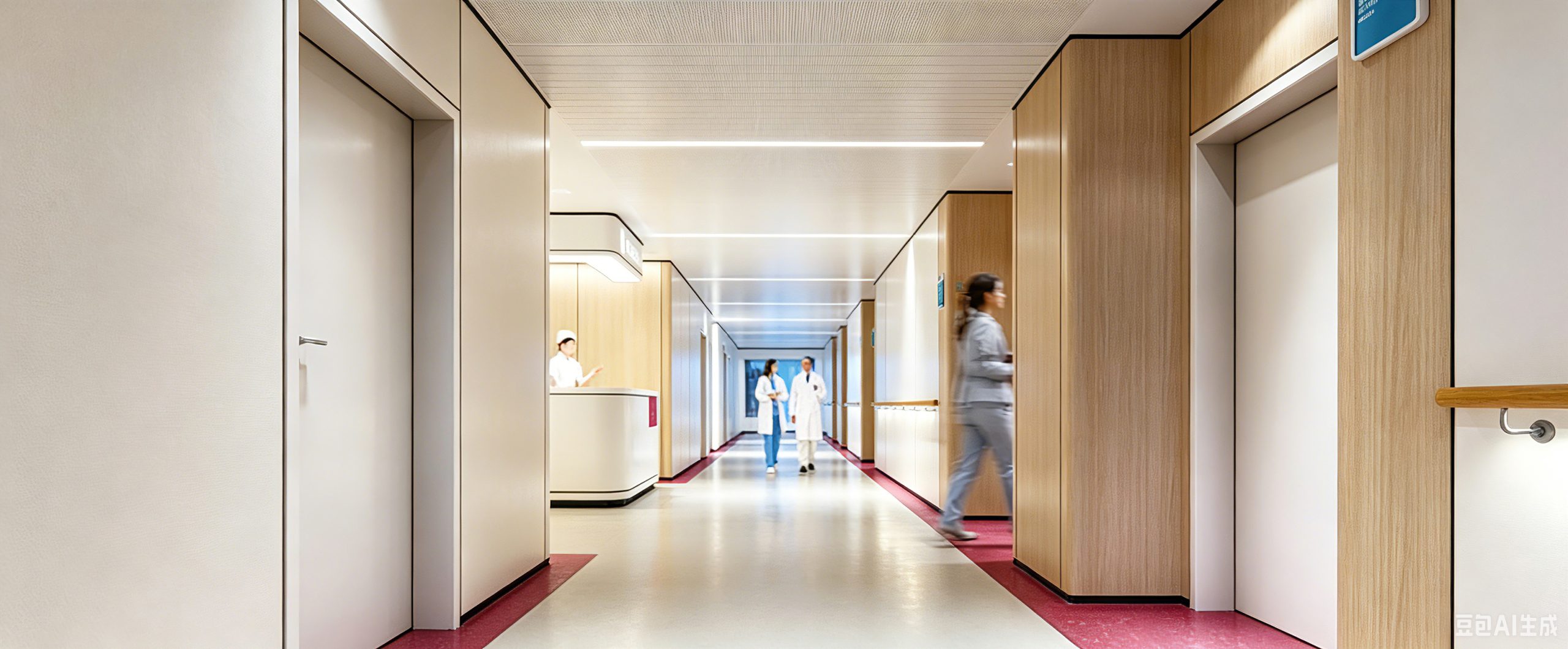

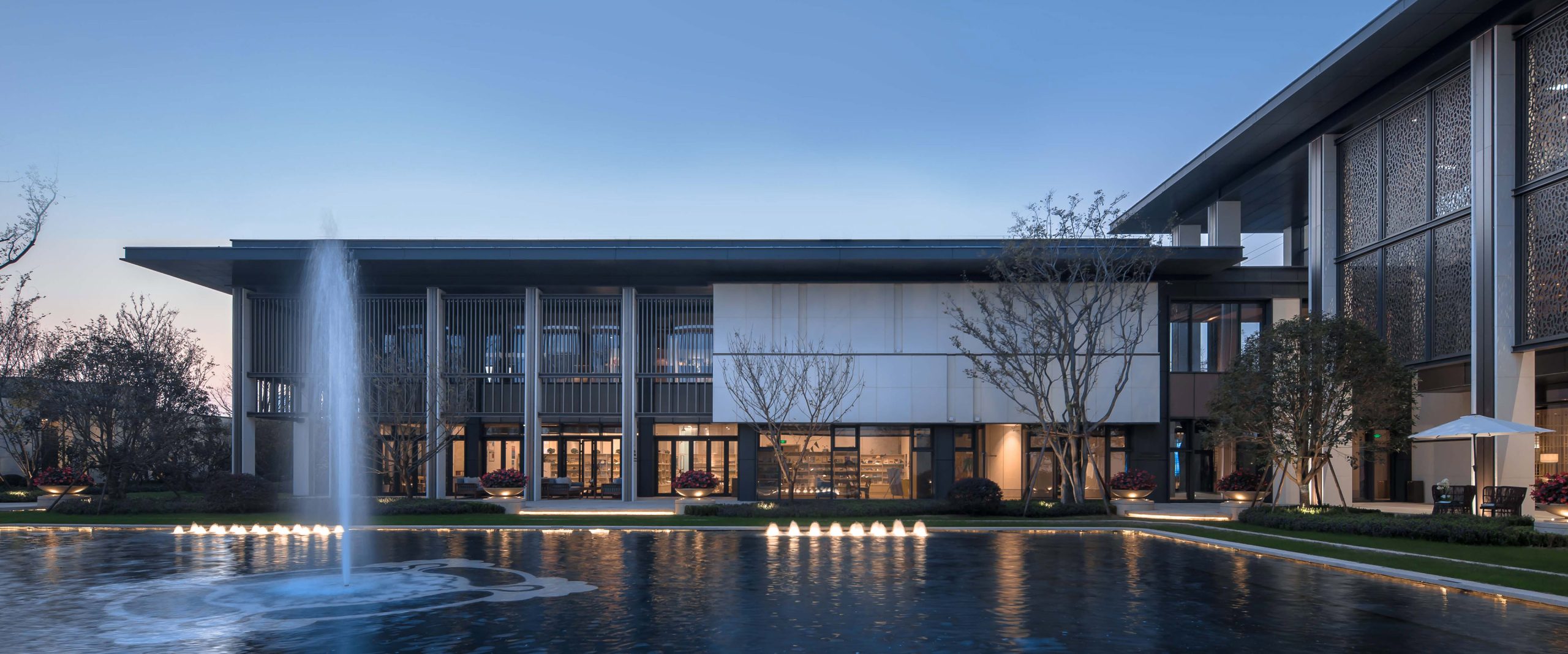

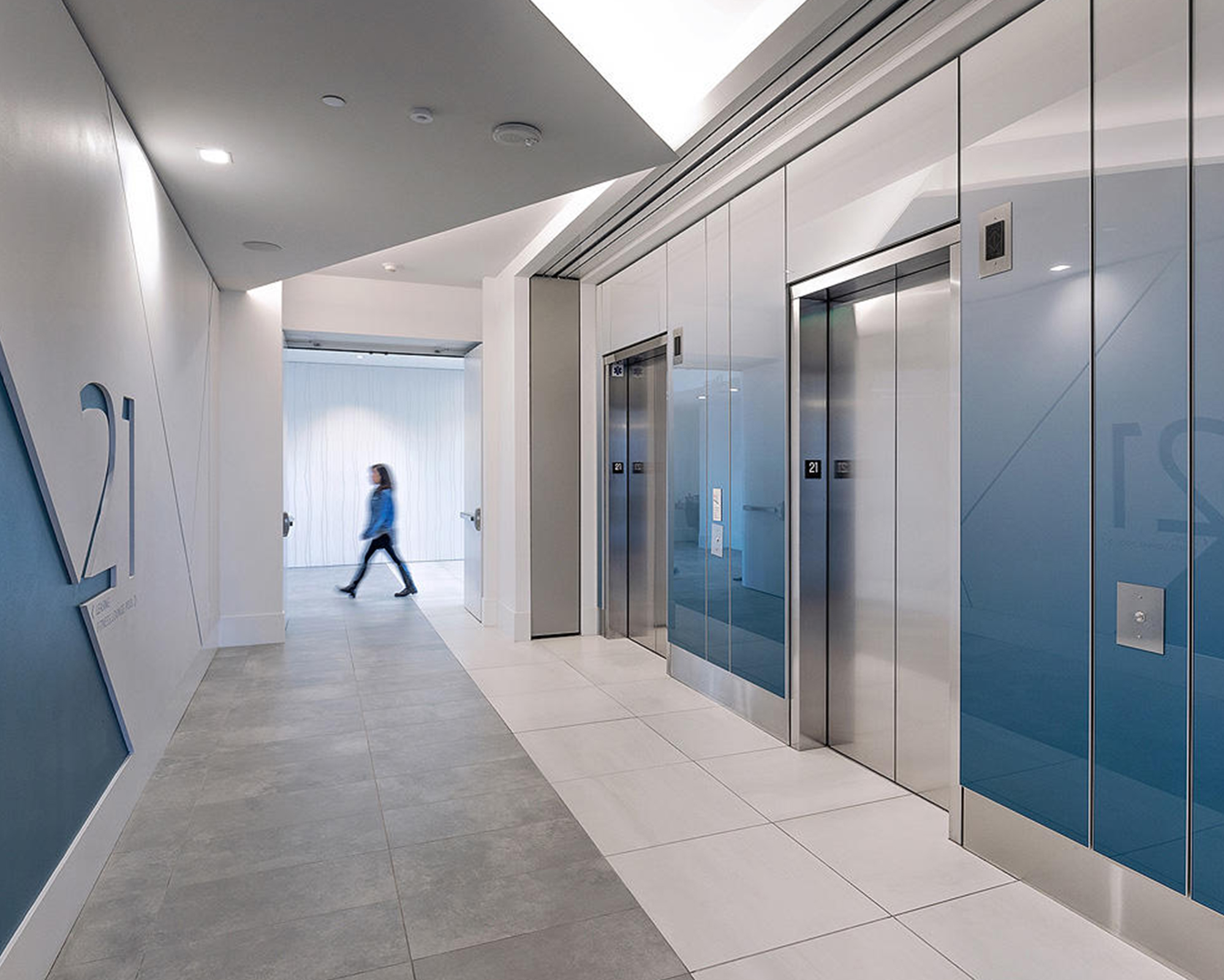

Quick-Install Flat-Clip Panel – Project Case Studies
