What is a hookup?
Aluminum hook-on panels are innovative curtain wall materials made from CNC-bent aluminum alloy with decorative coatings. Available in 1.0-3.0mm thicknesses, these customizable rectangular panels feature a 30mm folded edge. One side hooks inward while the other overlaps outward, hence the name “hook-on panel”.

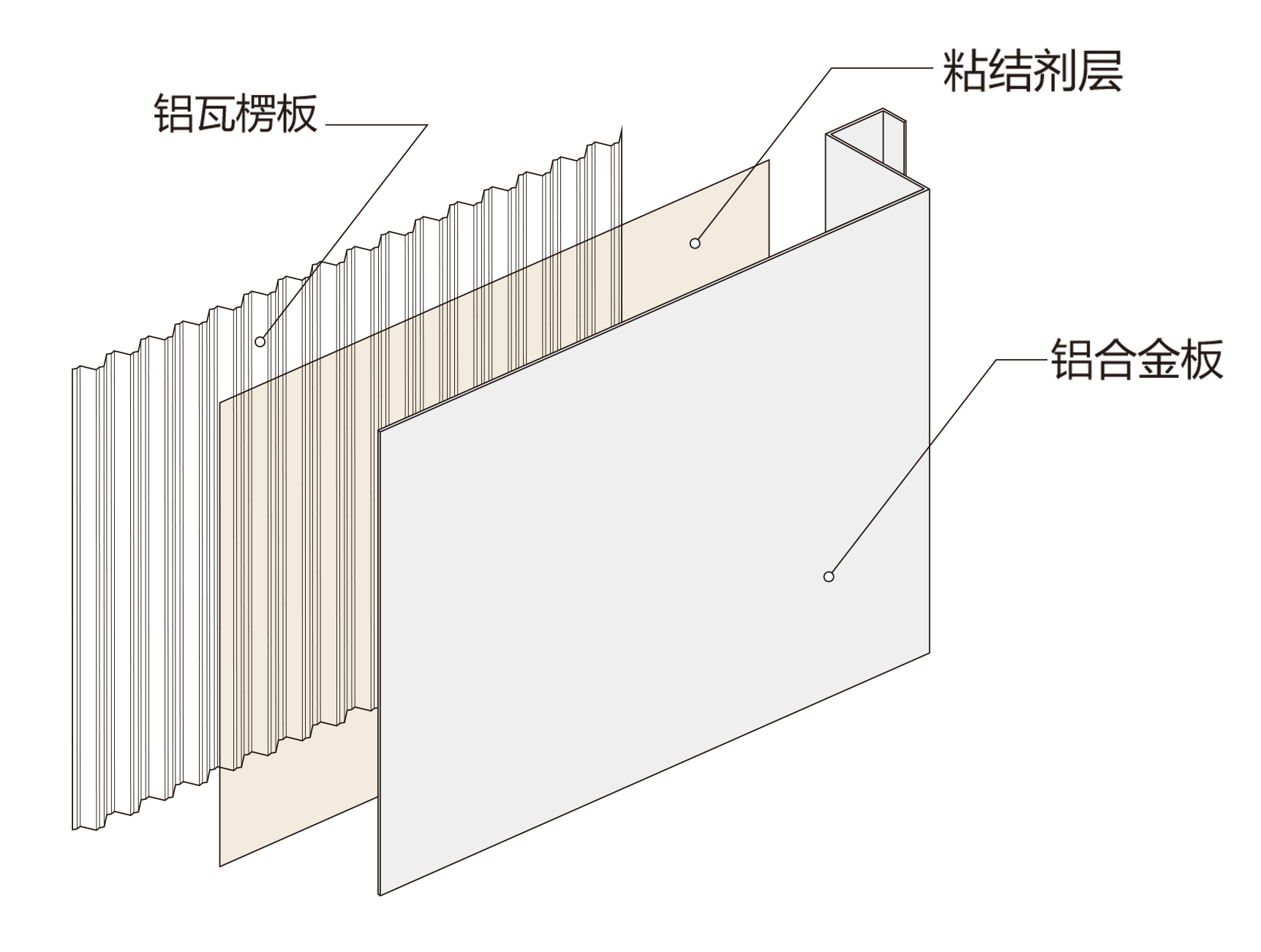

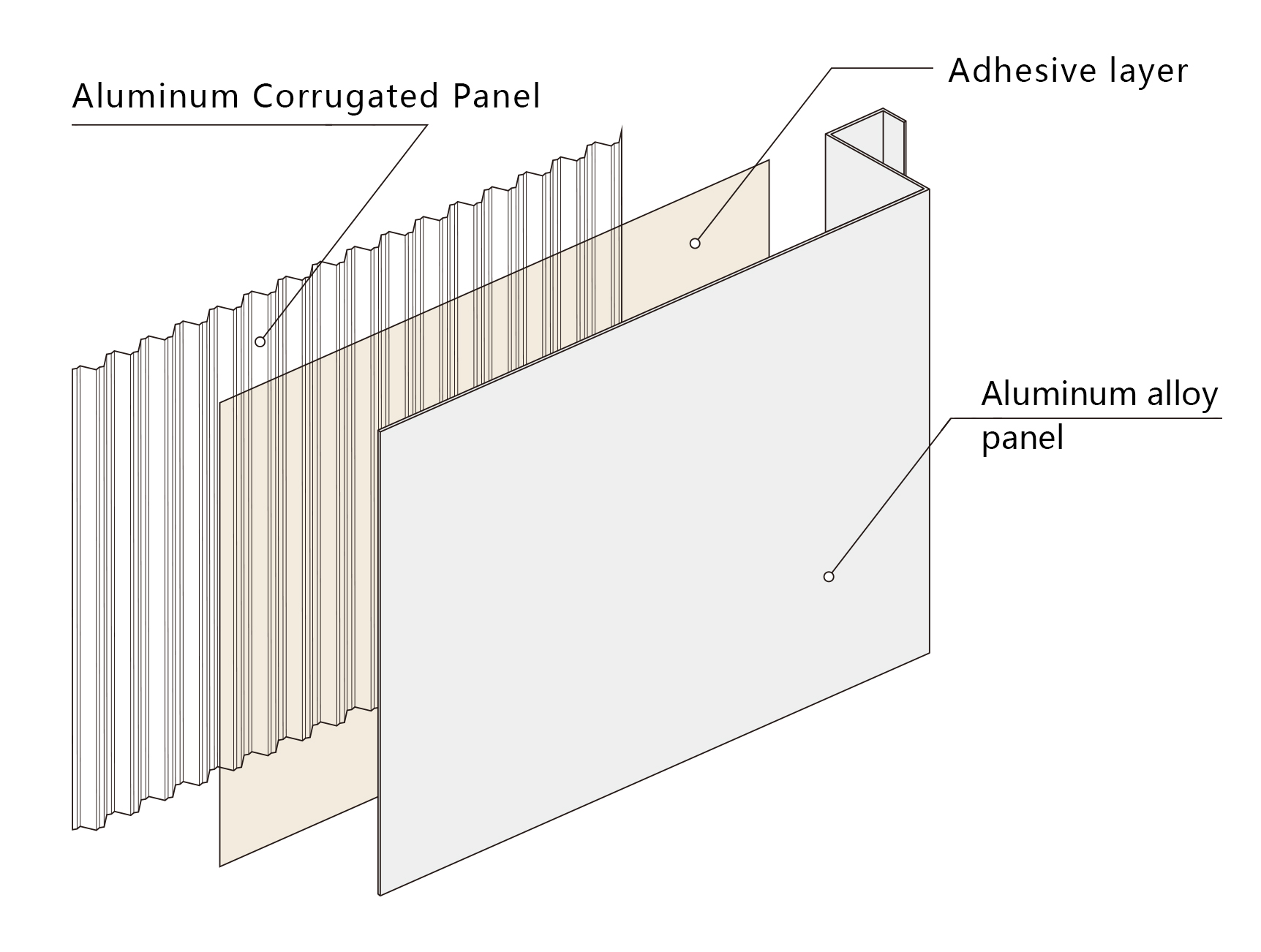

Product structure
Full positive corrugated hook-on panels offer easy, highly prefabricated, and customizable installation. They feature a refined 3D appearance, high strength, and superior flatness, with optional perforation for sound absorption. Ensuring seamless wall integration and noise-free, no-drill assembly, these energy-efficient panels provide versatile metal ceiling solutions for diverse spaces.

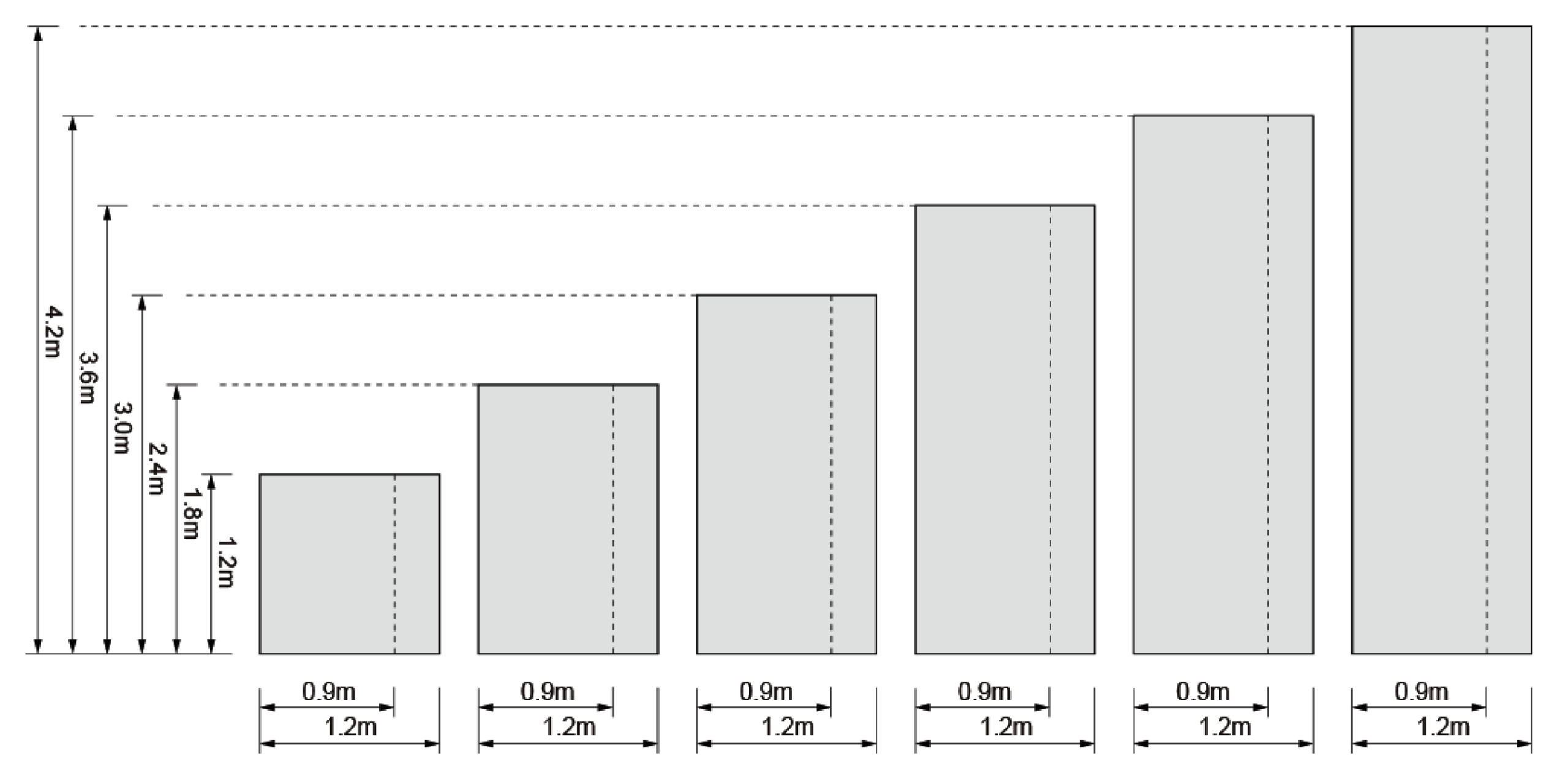

Dimension Specifications
Description: Standard height is 25 mm. Custom sizes, thicknesses and surface finishes are available upon customer request.
| Project | Standard Sizes & Technical Parameters |
|---|---|
| Material | High-Quality Aluminum-Magnesium Alloy Panel |
| Thickness | 25mm (Customizable upon request) |
| Width | ≤ 1200mm |
| Length | ≤ 4200mm |
| Fire Rating | Class A (GB8624-2012) |
| Noise Reduction Coefficient (NRC) | 0.7-0.75 |
| Surface Treatment | Perforation, carving, hollowing, expanded mesh, custom irregular shapes |
| Production Process | Fluorocarbon coating colors customizable via color cards; special treatments customized based on specific requirements |
| Deformation Resistance | The air layer in the aluminum composite core is divided into numerous sealed unit cells by the face sheet, back sheet, and corrugated or honeycomb core. It features high strength, excellent hardness, and ultra-high rigidity, far surpassing traditional aluminum composite panels and solid aluminum veneers. |
| Weight | Low specific gravity and lightweight; only 1/5 the weight of steel plates of the same specification, ensuring safer application. |
| Color & Warranty | Fluorocarbon coating guarantees color for 15 years; PVC film guarantees color for 20 years. |
| Packaging | Inner layer protected by plastic film, outer layer wrapped in bubble wrap, and additionally secured in wooden crates. |
| Quality Assurance | Aluminum material has a service life of 50 years with high recycling value. |
Here is the professional and concise English translation, optimized for technical and marketing materials:The full-corrugated hook-on panel features an aerospace-grade metal corrugated core, making it ideal for medical, educational, and public spaces. Utilizing advanced hot-press molding technology, the internal air gaps provide excellent thermal insulation while allowing free airflow to prevent structural deformation from thermal expansion and contraction. Combined with multi-layer structures (such as film-coated galvanized steel) through high-temperature composite and integrated hot-pressing techniques, the panel ensures superior integrity, strength, and flatness. Its lightweight, high-strength, and high-rigidity design delivers exceptional resistance to high wind pressure, alongside superior shock absorption, acoustic insulation, thermal efficiency, and fire resistance.

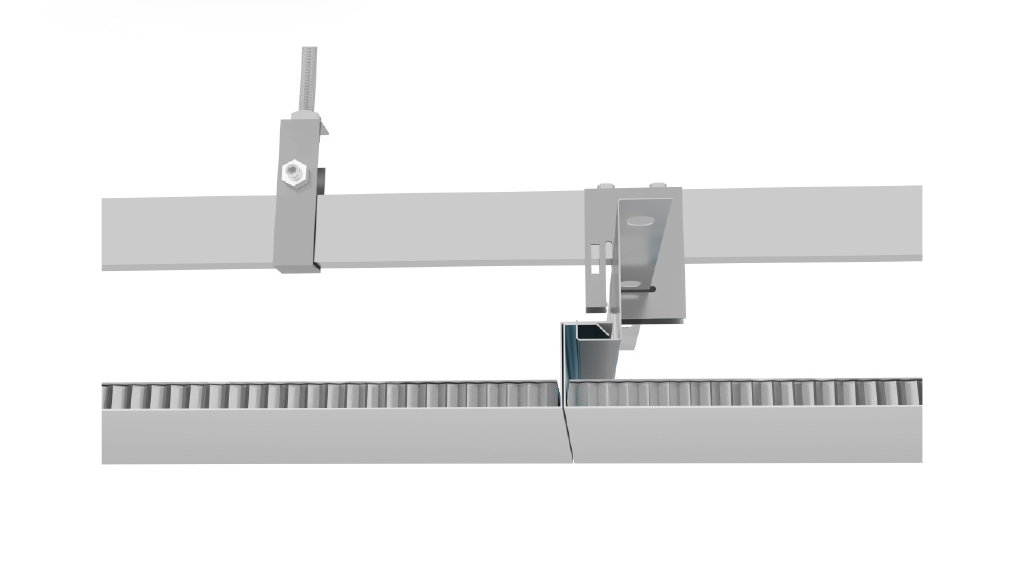

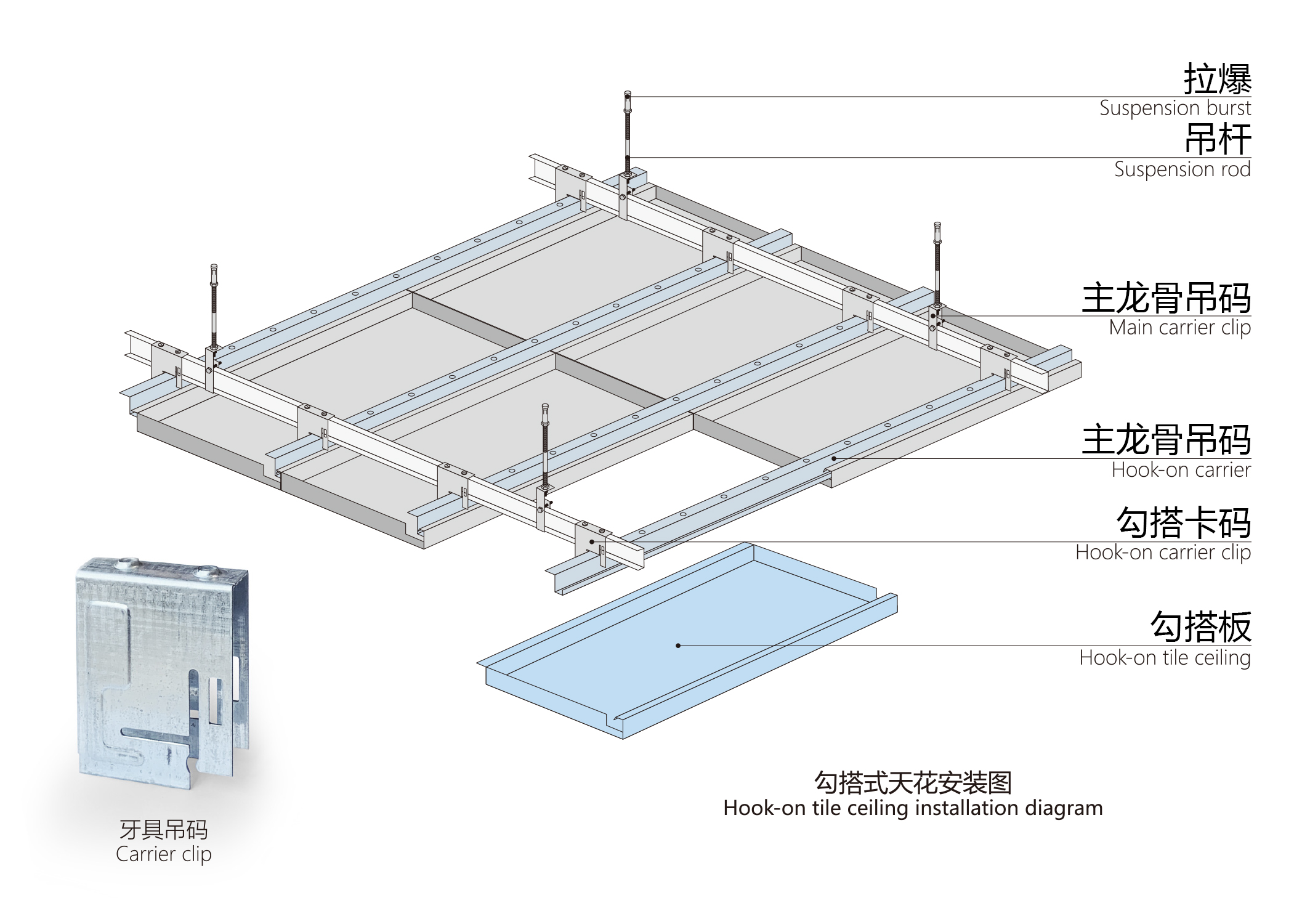

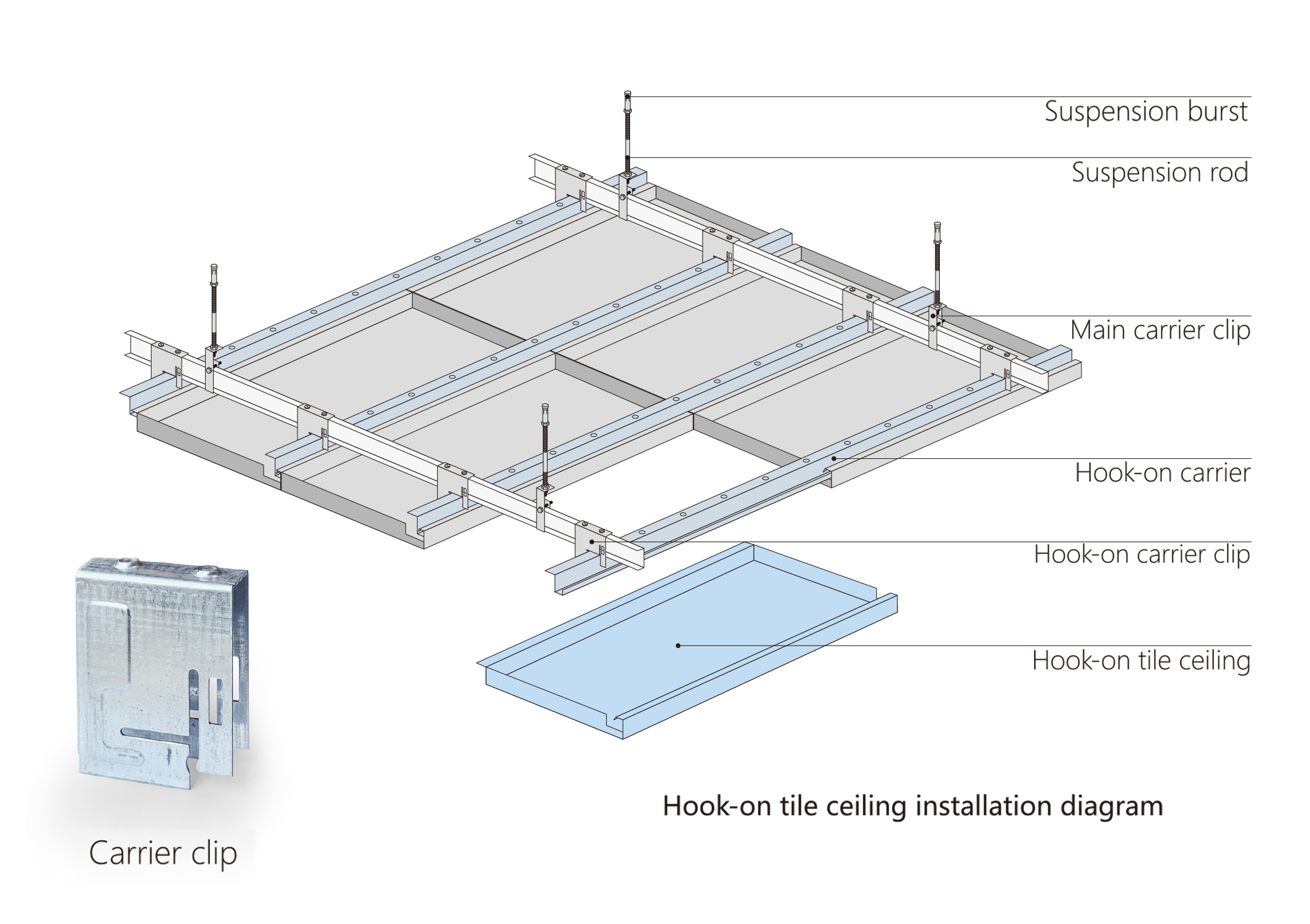

Installation Instructions

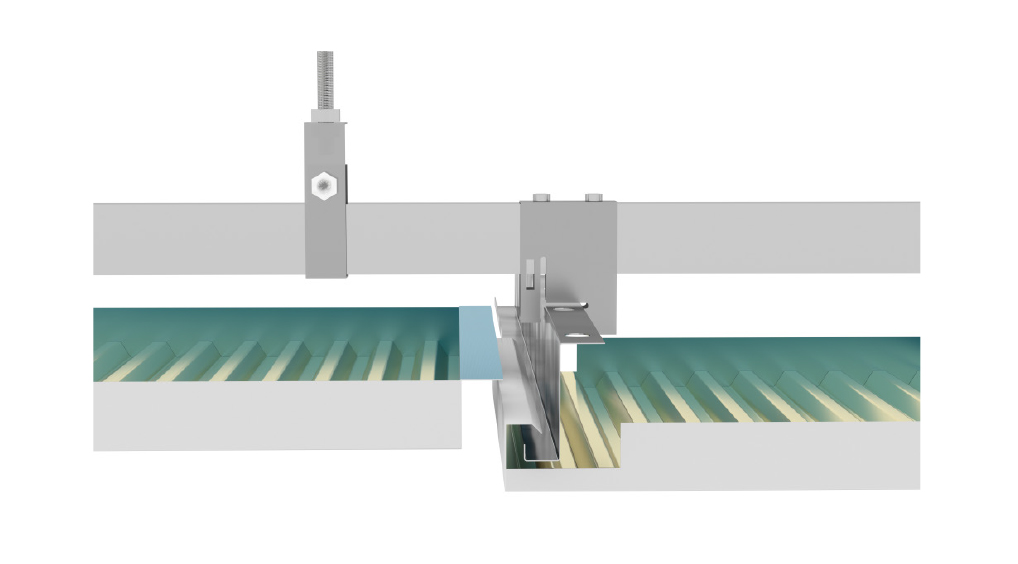

1、Simple and stable structure with concealed ceiling installation; easy to mount and dismount.
2、Unique interlocking edge design effectively limits displacement between panels, ensuring tight and uniform seams.

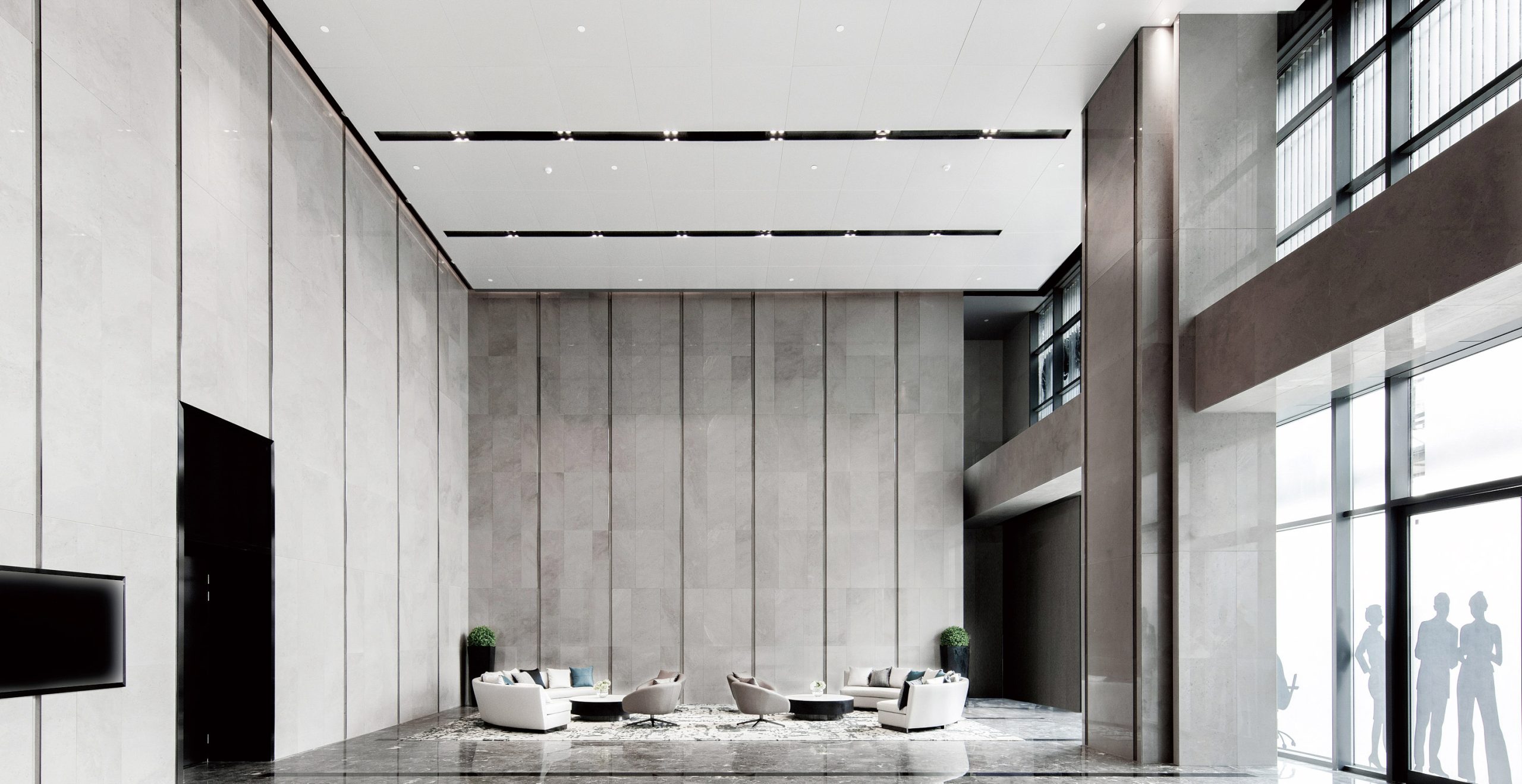

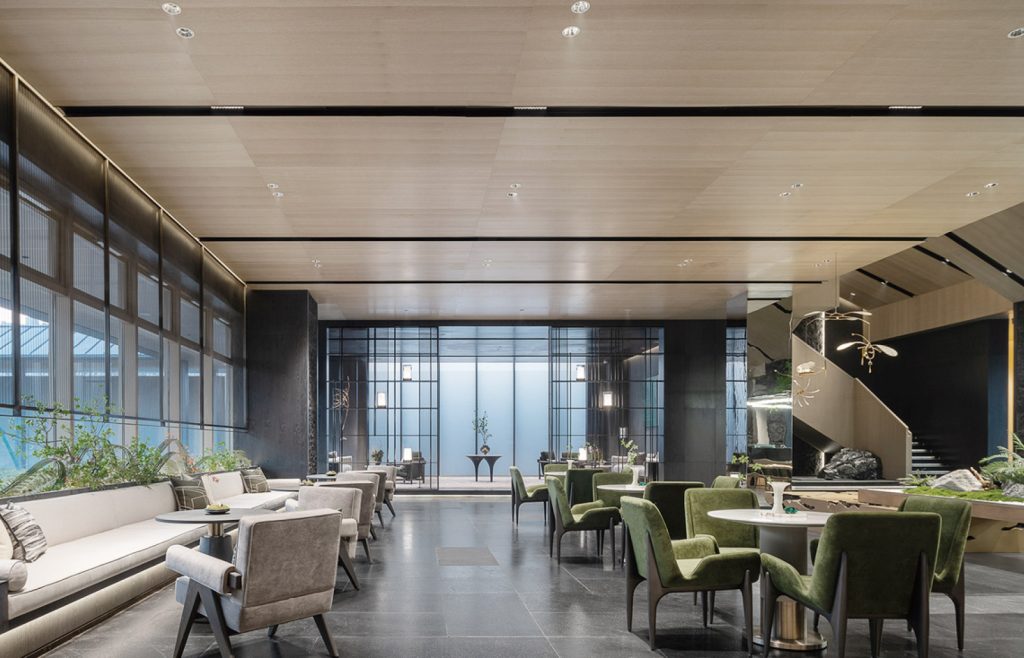

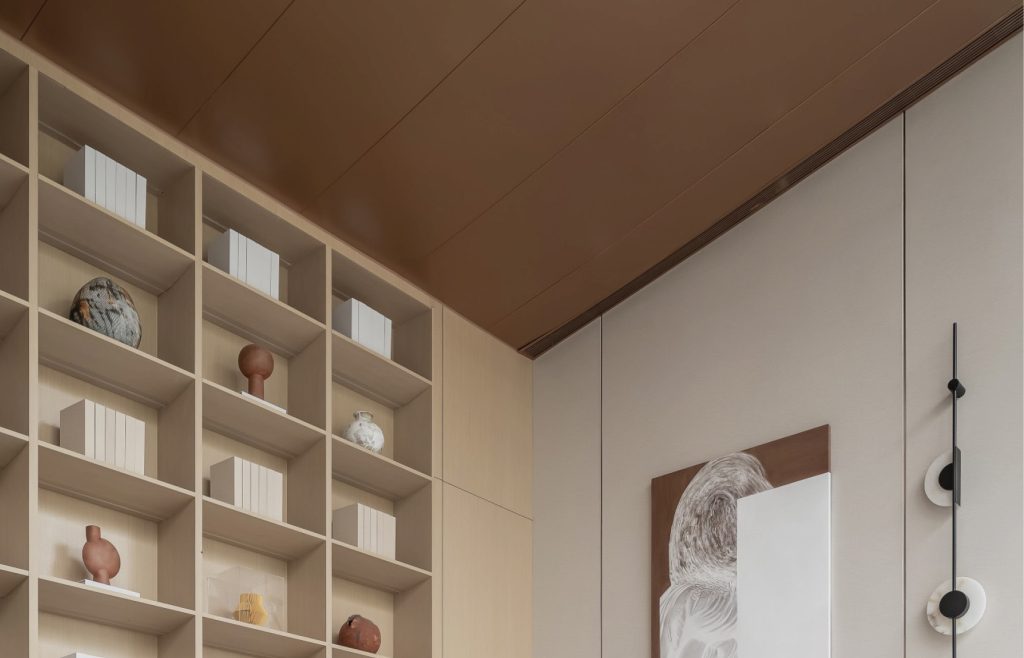

Application field

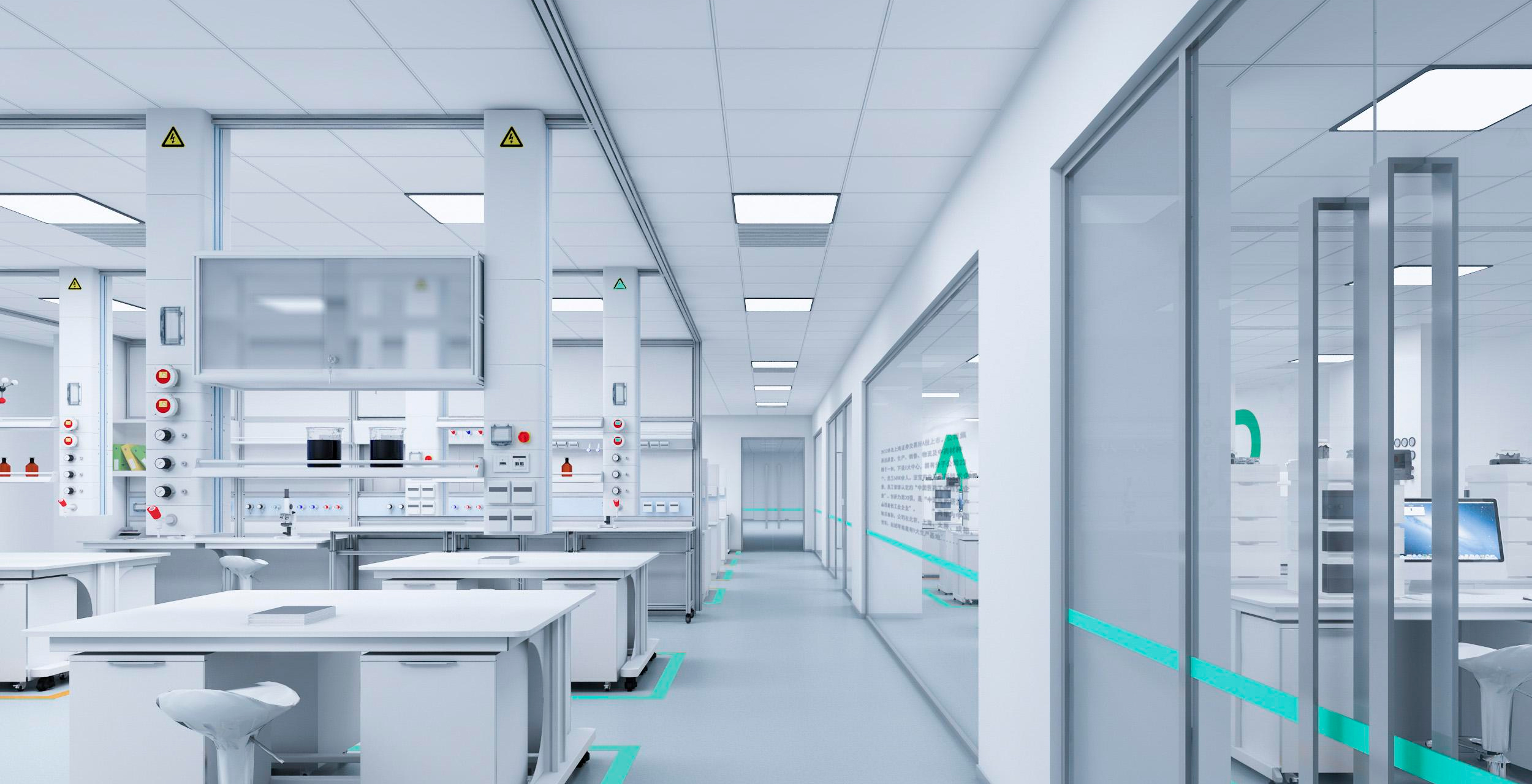

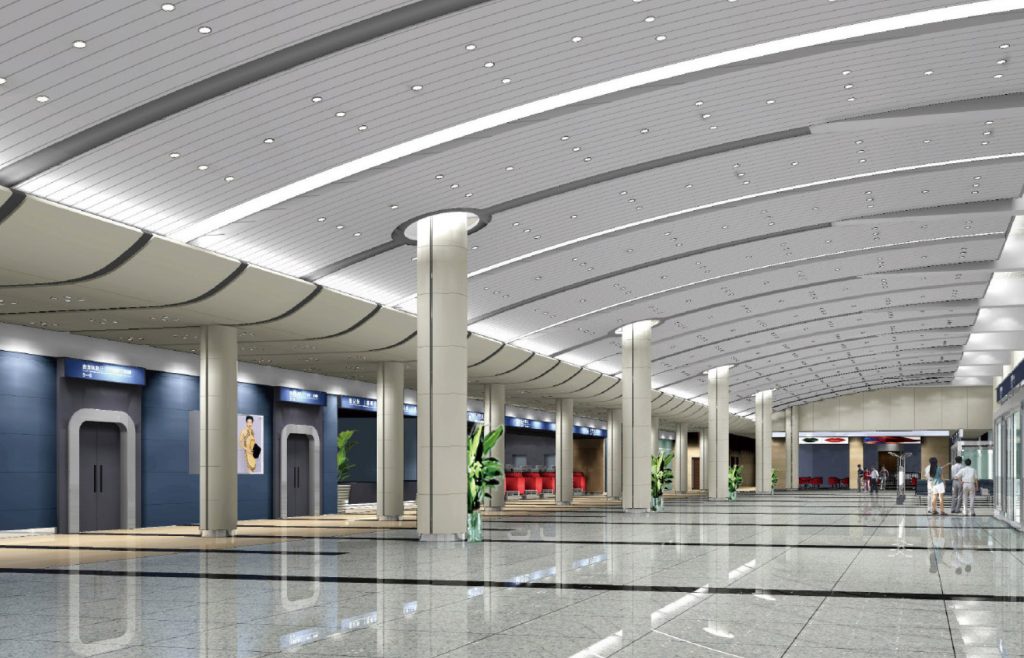

Public Spaces
Commercial Spaces
Exhibition Spaces
Leisure Spaces
