Aluminum honeycomb panel manufacturing technology originates from the aviation industry.

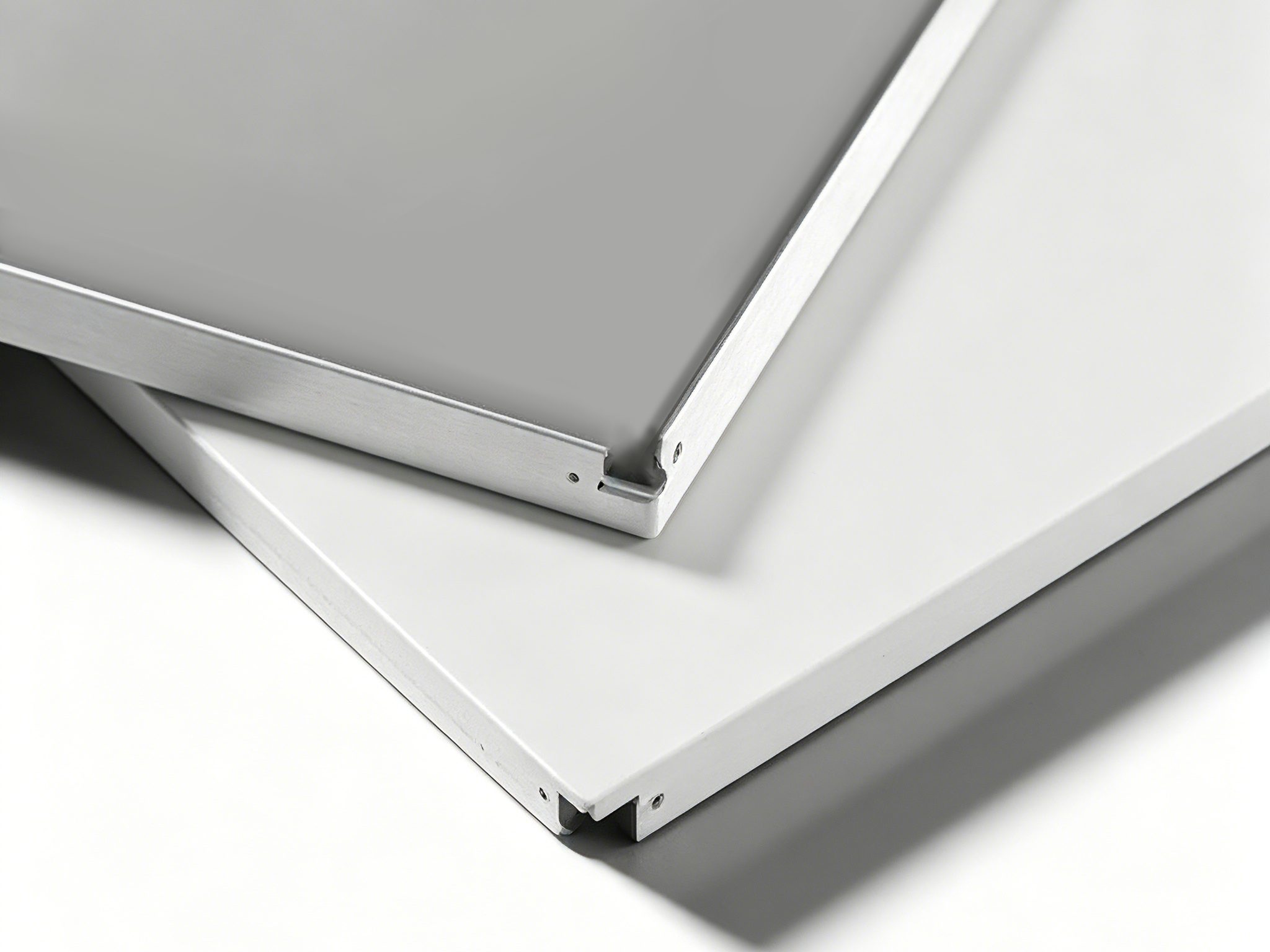

Double-folded edges, double-clip edge hanging and fastening

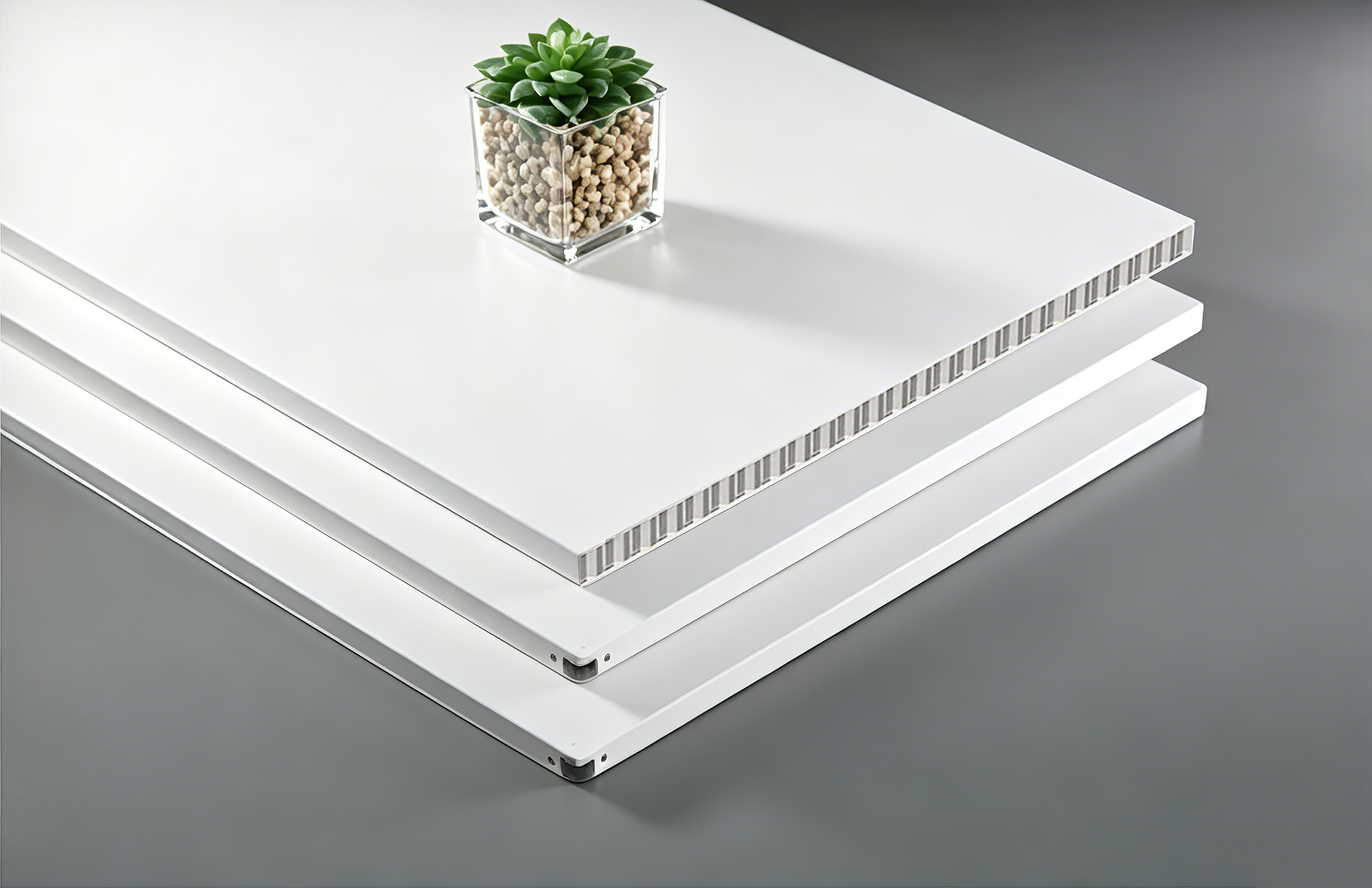

As a ceiling system, it is not only durable and features extra-large panel sizes, but also offers excellent flatness. Aluminum honeycomb panels are flexible in terms of bending and folding, possess good workability, and provide a wide range of surface treatment options. In addition to aluminum alloy sheets, the face panels can also be made from other materials according to customer requirements, such as copper, zinc, stainless steel, etc.
Our company has developed aluminum honeycomb panels specifically for the ceiling market, in full compliance with ceiling standards. The panels are generally available in a thickness of 12mm and offer customization in terms of size, shape, color, and more. They are not only suitable for indoor and outdoor ceiling applications but also for column cladding, beam cladding, partitions, and wall systems, with a wide range of applications.
PERFORMANCE PARAMETER
- Aluminum Honeycomb Skin: Roller-coated aluminum sheet, with A3003 and A1100 substrates, thickness ranging from 0.15mm to 1.0mm.
- Panel Thickness: Standard thickness 12mm (customizable upon request).
- Aluminum Honeycomb Core Specifications: 3003H24 aluminum honeycomb core material, with a core wall thickness of 0.05mm and a cell size of 4–5mm.
- Adhesive: Polyurethane AB composite adhesive.
- Standard Length and Width：1200x2400mm, 1200x3000mm, 1200x3600mm, 1200x4200mm
- Surface Treatment: Polyester, fluorocarbon, and 3D tactile finish.
PRODUCT FEATURES
- Practical and innovative: double-folded edges and four-side clip system for easier installation.
- Better aesthetics, superior flatness, and enhanced durability.
- Greater strength, better overall elasticity, and higher hardness.
- Unlimited design possibilities, better overall integrity, and reduced auxiliary material consumption.
- Seamless splicing in any direction, more precise corner alignment, and extremely small R-angle.
We’ve worked with some of the best companies.
Eco-friendly Materials
Made of durable aluminum-magnesium alloy aviation-grade material, featuring anti-rust and anti-corrosion properties, and maintaining its shape even after repeated disassembly and reassembly.
Anti-corrosion Coating
Epoxy primer provides excellent coating performance, with strong adhesion and a coating that never peels off.

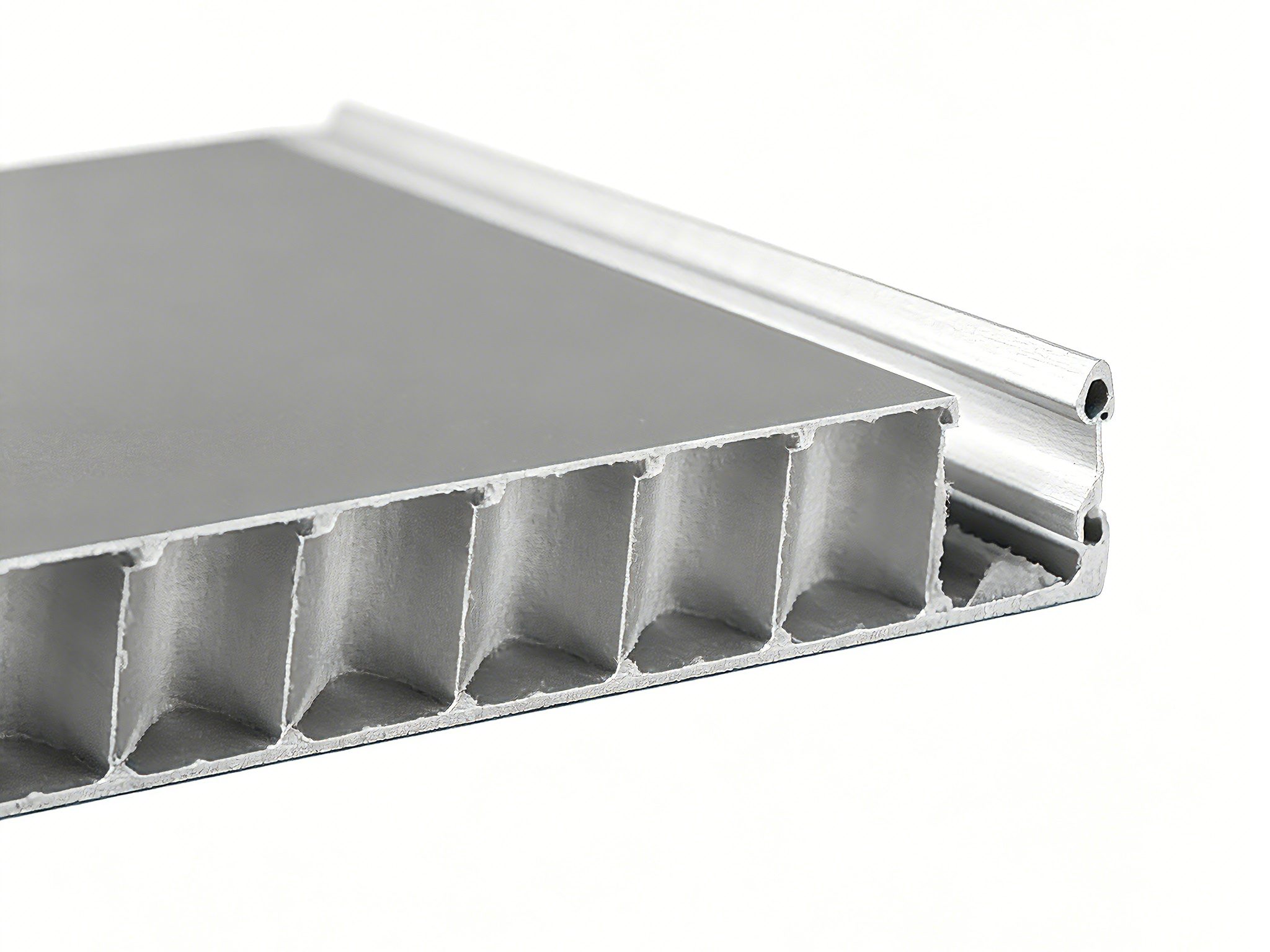

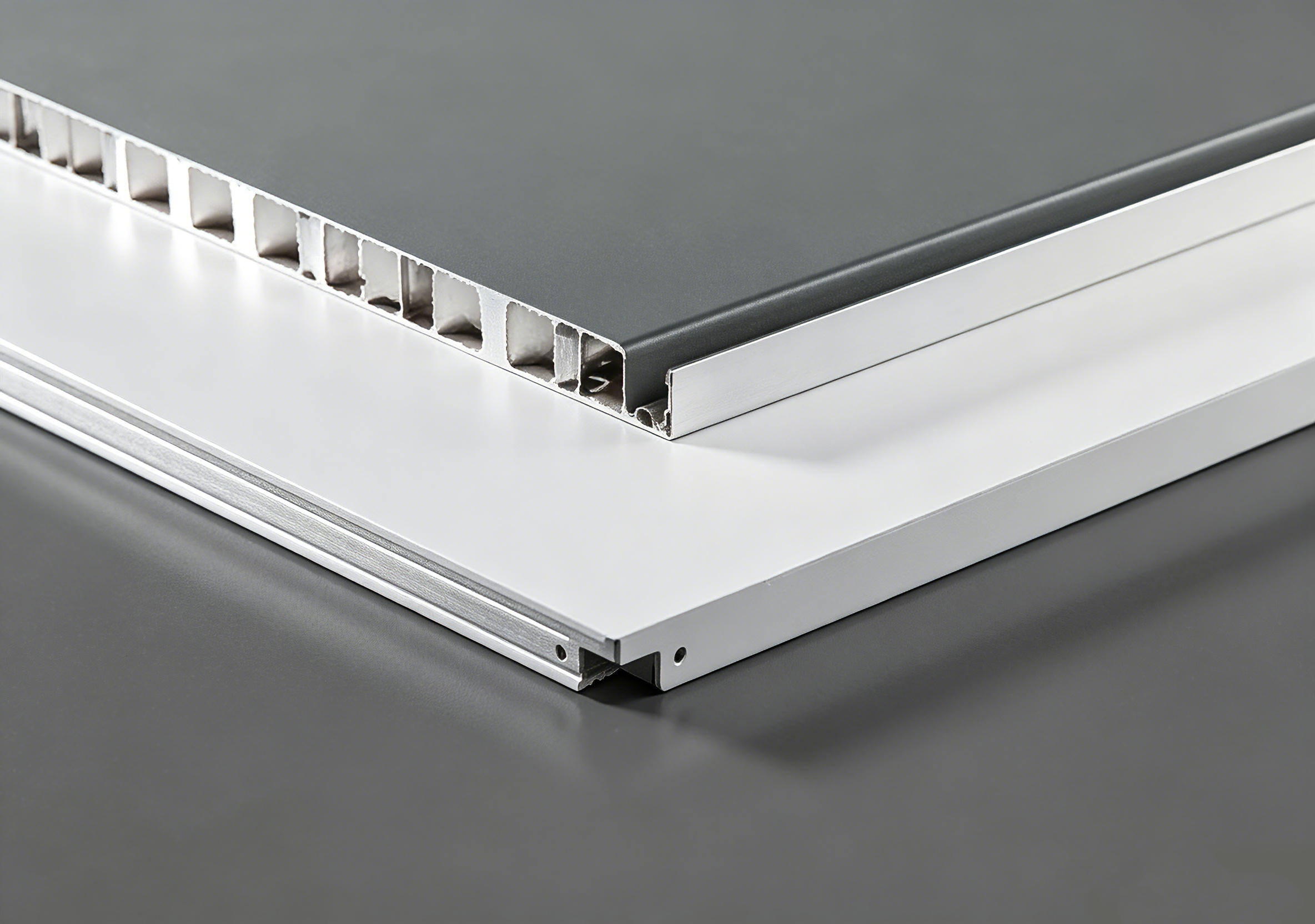

Double-edge clip + double-folded edge
Innovative double-edge clip and double-folded edge technology, eliminating the need for complex frame-assembly and keel-snap installation structures.
Bendable
Cuttable, drillable, multi-level bendable, and formable into complete large-format honeycomb panels with special-shaped structures. Simple yet robust, with enhanced architectural aesthetics.

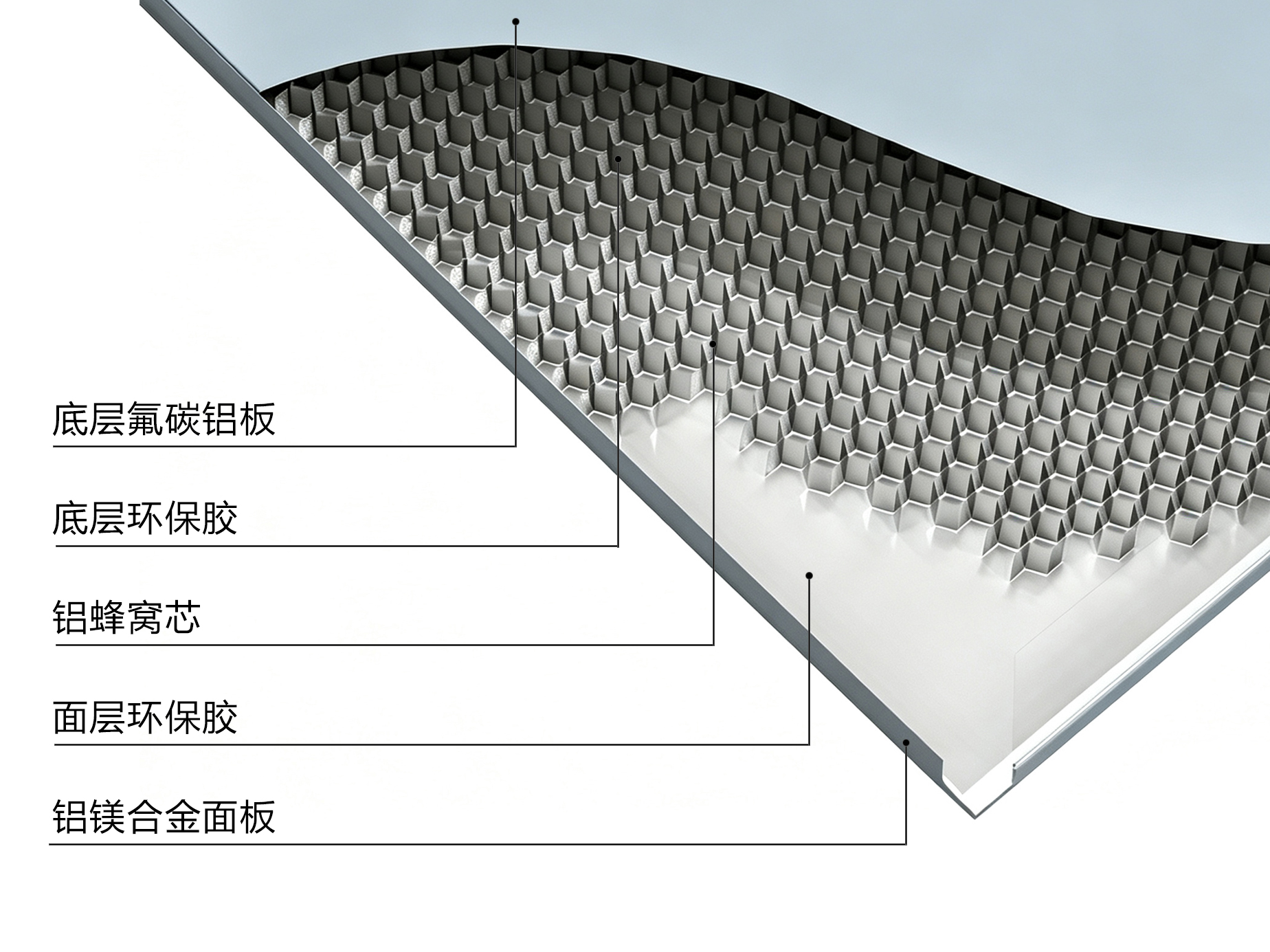

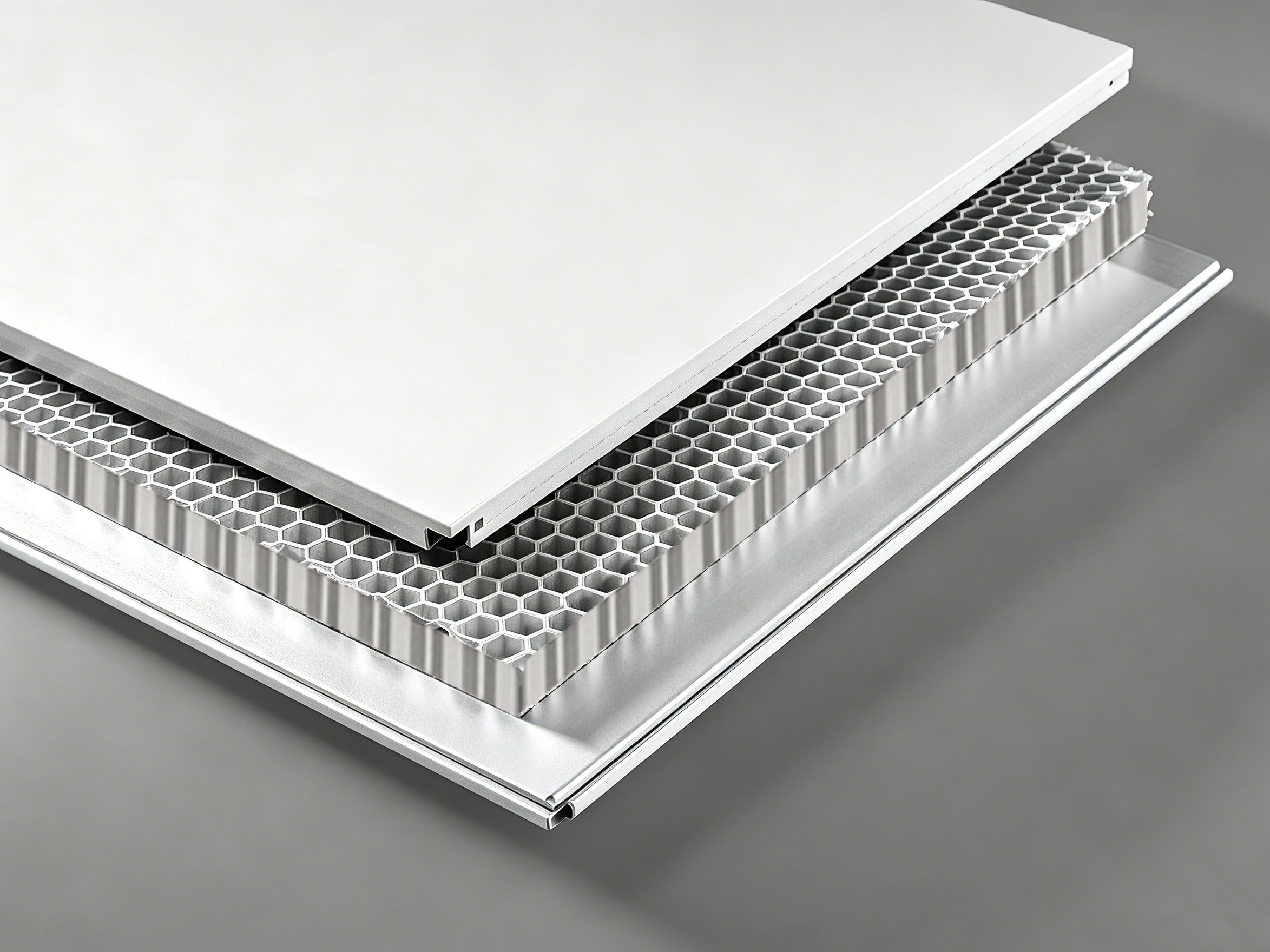

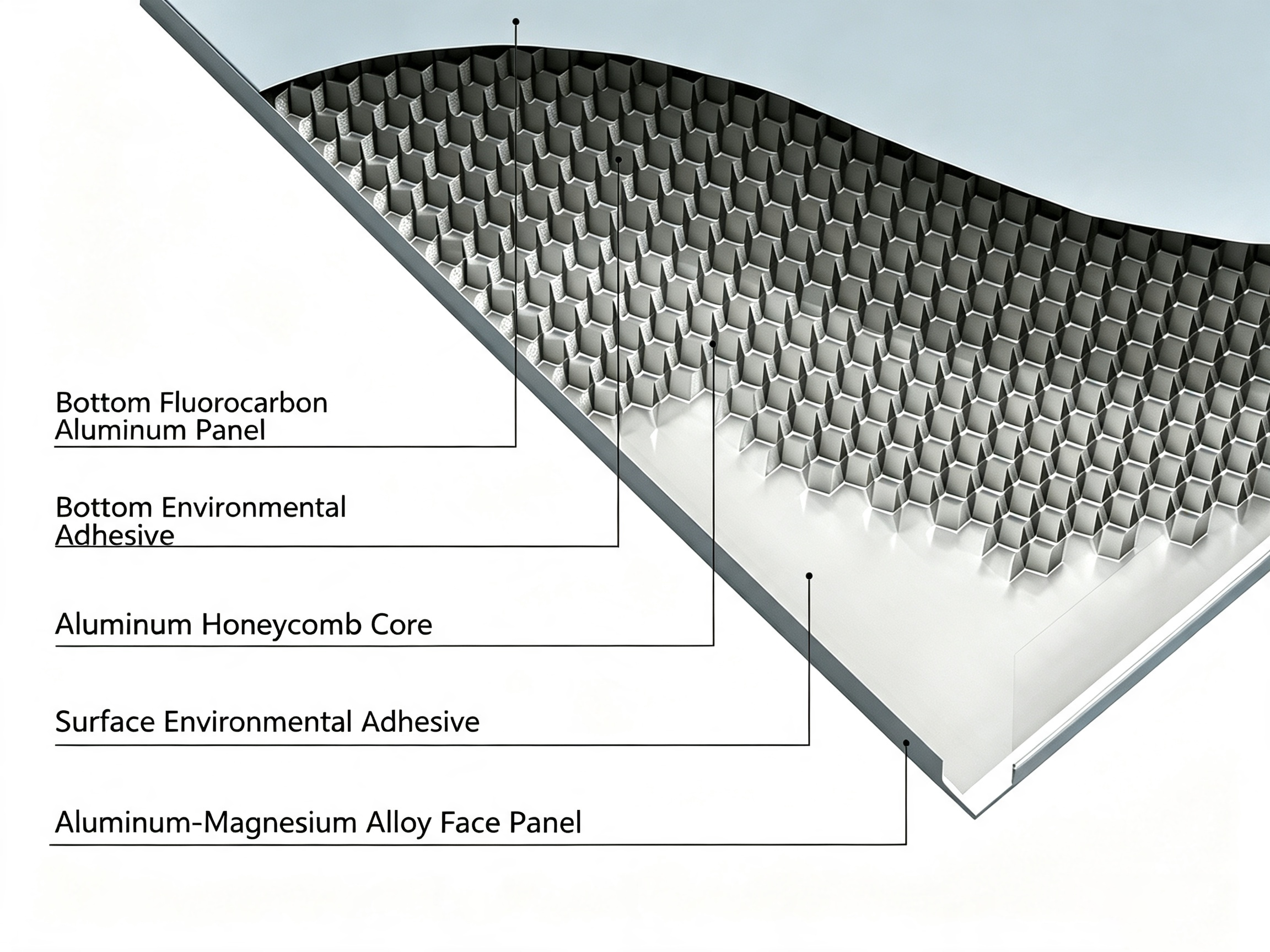

Aluminum Honeycomb Core
The honeycomb core is made of aviation-grade aluminum-magnesium alloy, featuring light weight, high hardness, corrosion resistance, and excellent flatness.
Easy Installation

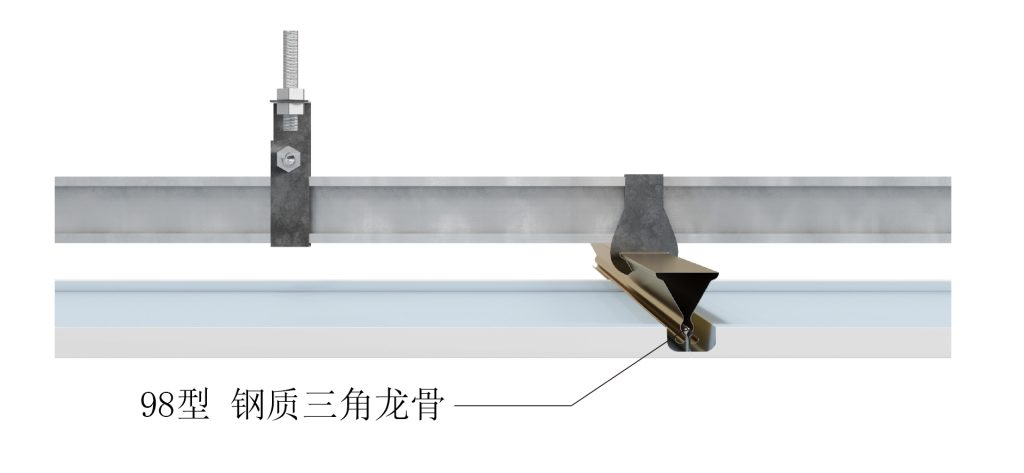

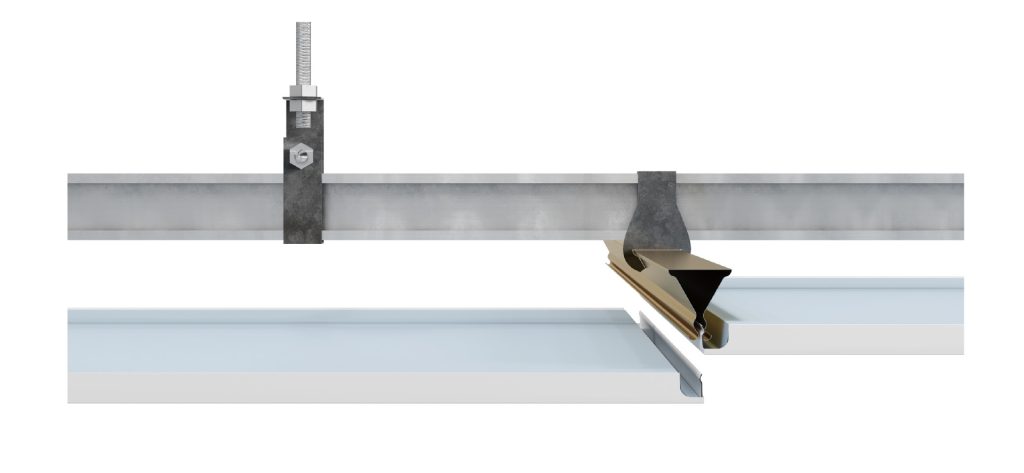

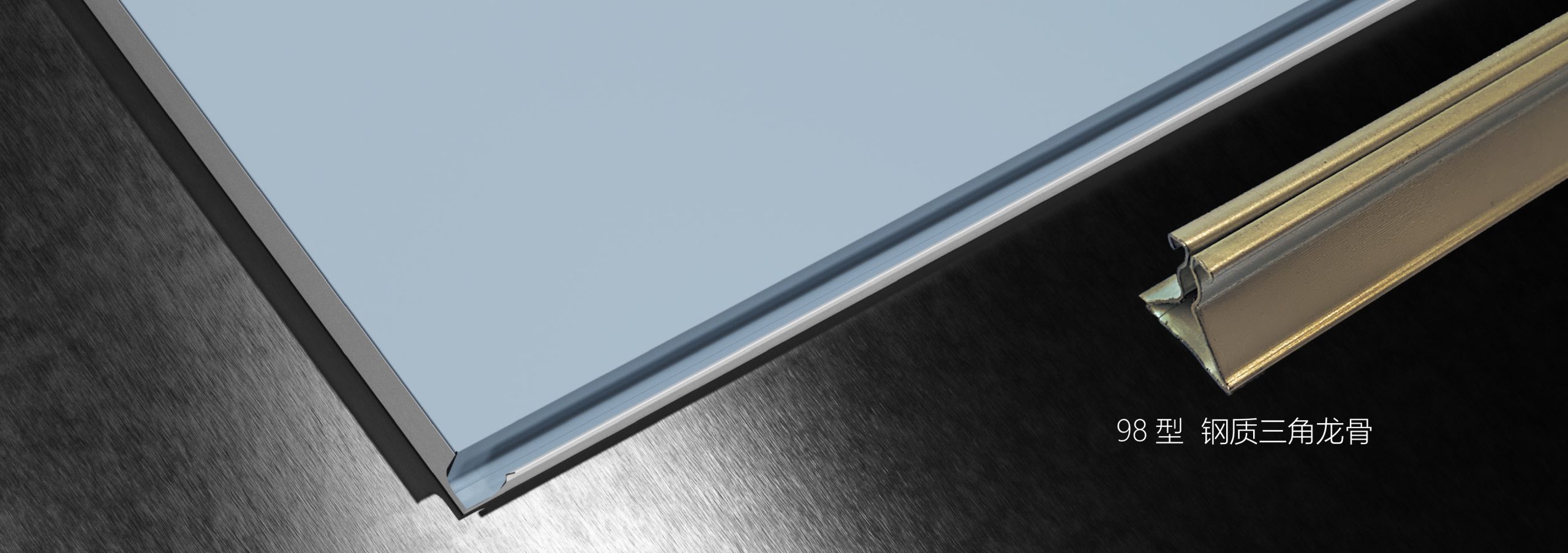

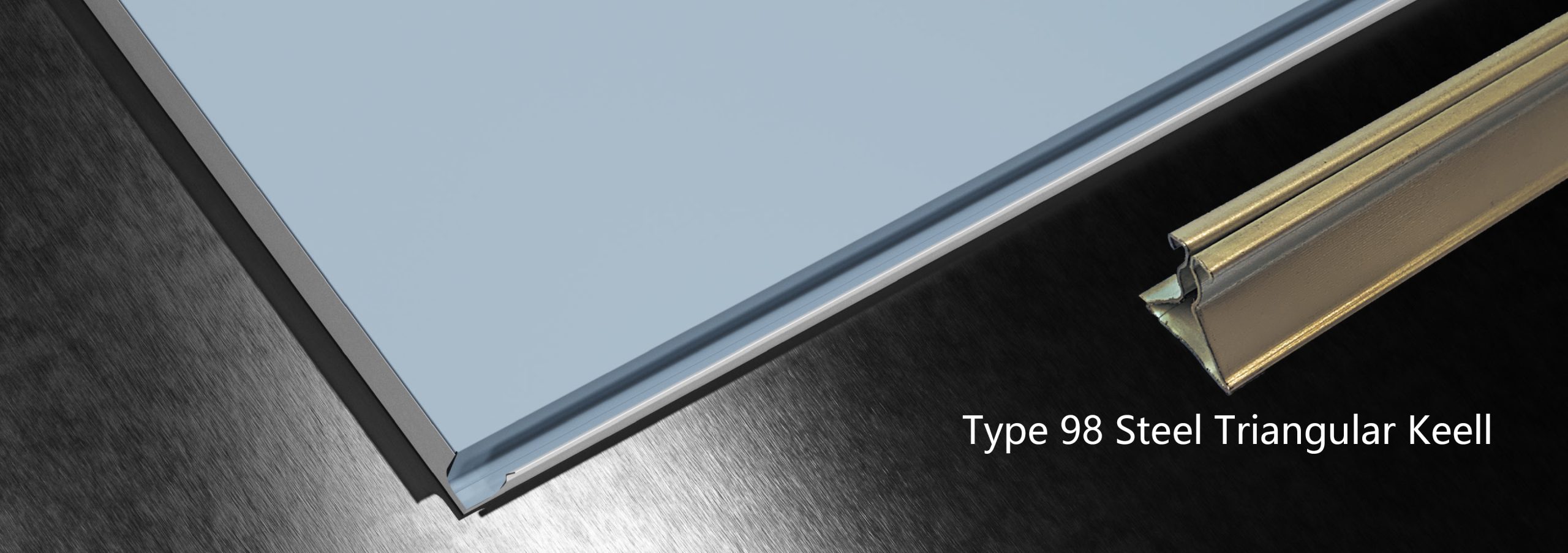

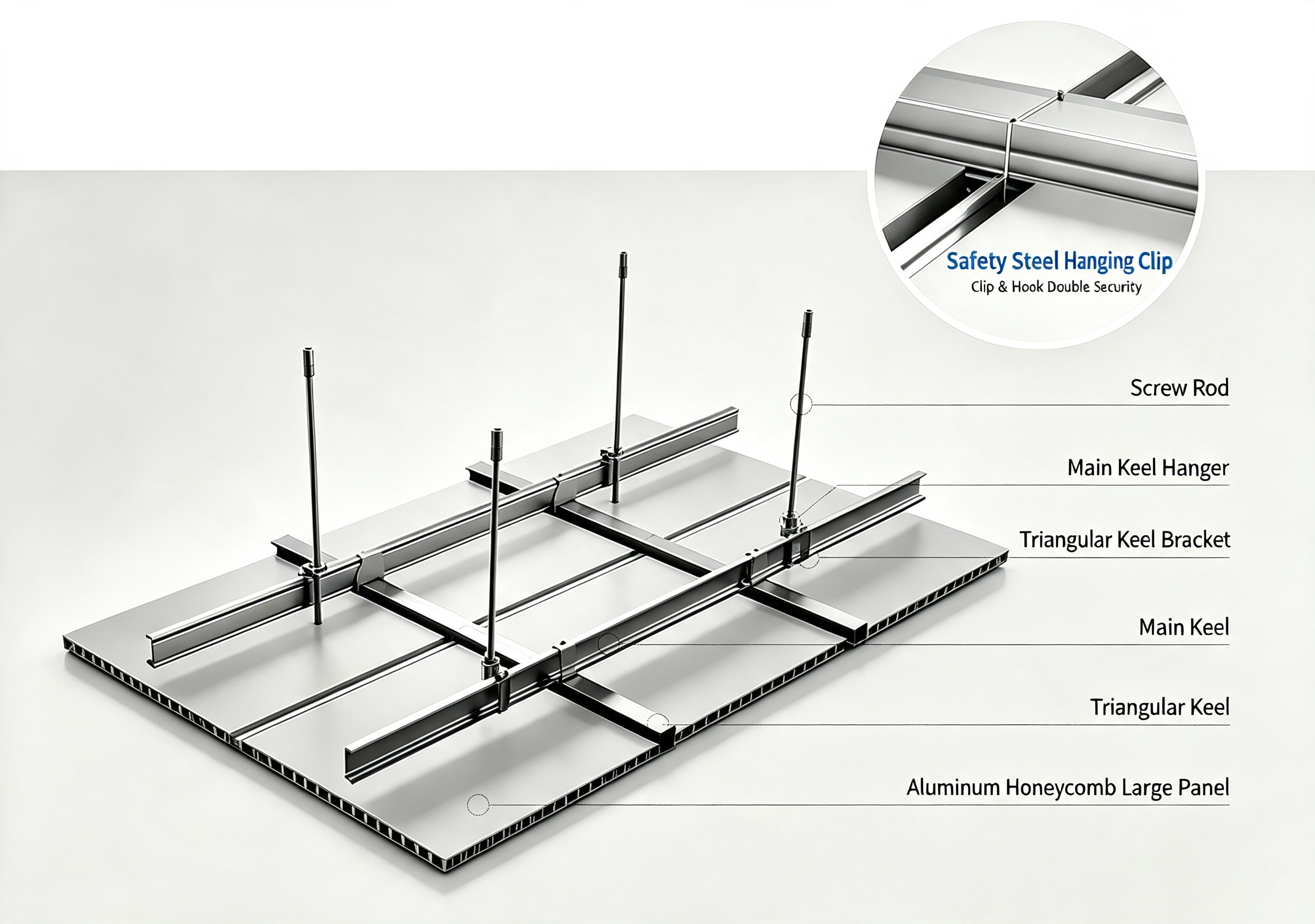

Main keel and triangular keel installation: simply snap-fit onto the triangular keel. Ordinary carpenters can handle it without the need for specialized professionals — saving time, labor, and enabling quick installation.
PRODUCT MIX
PRODUCT FEATURES
The aluminum honeycomb panel ceiling system offers architects a wealth of choices in terms of panel materials, shapes, installation methods, colors, and surface finishes, enabling diverse ceiling design expressions with exceptional design freedom. Through advanced manufacturing processes and stringent quality control systems, our company ensures that the composite panels deliver outstanding peel strength and excellent physical properties, fully comparable to similar world-class brands.
3D rendering demonstration of the installation process for frameless large-format aluminum honeycomb panels.
